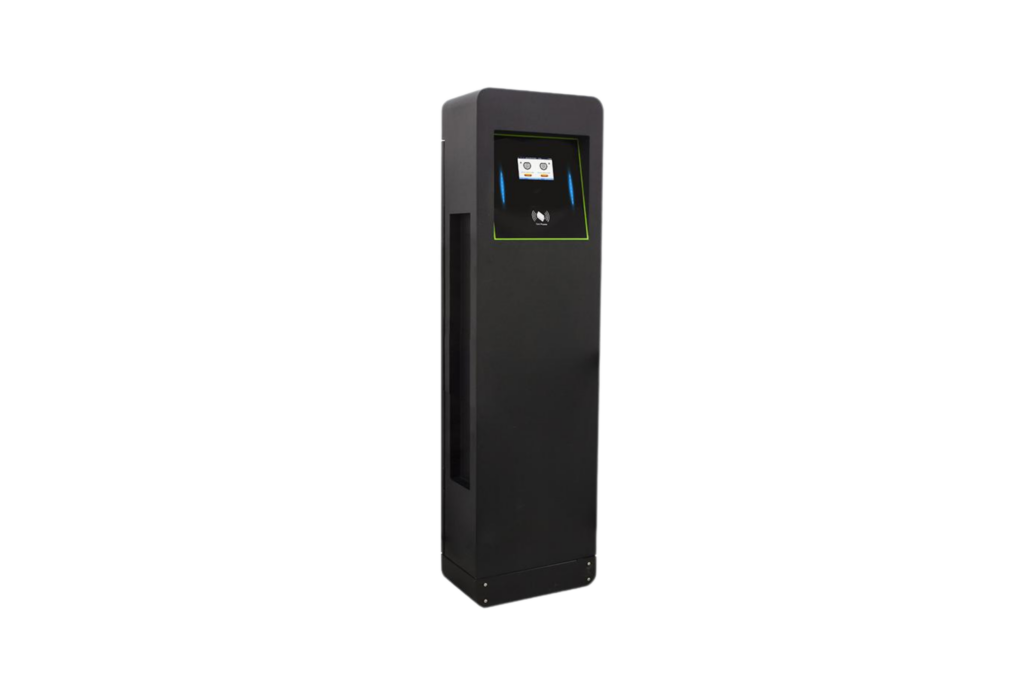

Ac Dual Gun EV Charging Station
Mode 3: Charging Station with a Type 2 socket
Ac Double Gun Charging Station
Mode 3: Charging Station with a Type 2 socket
Ac Double Gun Charging Station
The “Dual Gun EV Charging Station” is a product designed for electric vehicle (EV) charging.
As the name suggests, it features two charging “guns” or ports, which allow two EVs to charge simultaneously.
The charging station is equipped with advanced technology, such as an LCD for user interface, smart chip technology for efficient charging, and built-in safety features to prevent overcharging or overheating.
It also has a durable and weather-resistant casing to protect it from harsh environmental conditions.
The Dual Gun EV Charging Station is compatible with most types of electric vehicles, including those with fast-charging capabilities. It can be installed in various locations, such as parking lots, garages, and commercial buildings, to provide convenient and efficient EV charging for customers or employees.
Overall, the Dual Gun EV Charging Station is a reliable and practical solution for anyone looking to provide high-quality EV charging services.
Input & Output
| Power rating (Double socket) | 14kW (1 Phase) / 22kW (3 Phase) / 44kW (3 Phase) |
| Charging interface type | Type 1 SAE J1772 / Type 2 IEC 61851 / GB/T 20234 |
| Input & Output voltage | AC220V ±10% (1 Phase) / AC380V ±10% (3 Phase) |
| Output current | 16A / 32A |
| Frequency | 45–65Hz |
Protection
| Overvoltage protection | Yes |
| Undervoltage protection | Yes |
| Overload protection | Yes |
| Short circuit protection | Yes |
| Ground protection | Yes |
| Over temperature protection | Yes |
| Lightning protection | Yes |
Function and Accessory
| Communication | WiFi / 4G / OCPP 1.6J / LAN (Optional) |
| RFID | RFID cards (2 user cards) – Optional |
| RCD | Type A / Type A + 6mA DC |
| Display | 5-inch display (Optional) |
| LED Indicator light | Yes |
| Home load balancing (DLB) | Optional |
Working Environment
| IP grade | IP55 |
| Working temperature | -40°C ~ +65°C |
| Working altitude | ≤ 2000m |
| Working humidity | 5%–95% no condensation |
| Cooling mode | Natural cooling |
| MTBF | ≥ 100,000H |
| Special protection | UV resistance |
| Standby power | 3W / 5W (With LCD) |
Mechanical
| Dimension | 1500(H) × 400(W) × 230(D) mm |
| Cable length | 5m (16.4ft) standard, other lengths customizable |
| Weight | 40.7kg (including charging gun) |
| Installation method | Ground-mounting |
Certificate
| Certificate | CE |
