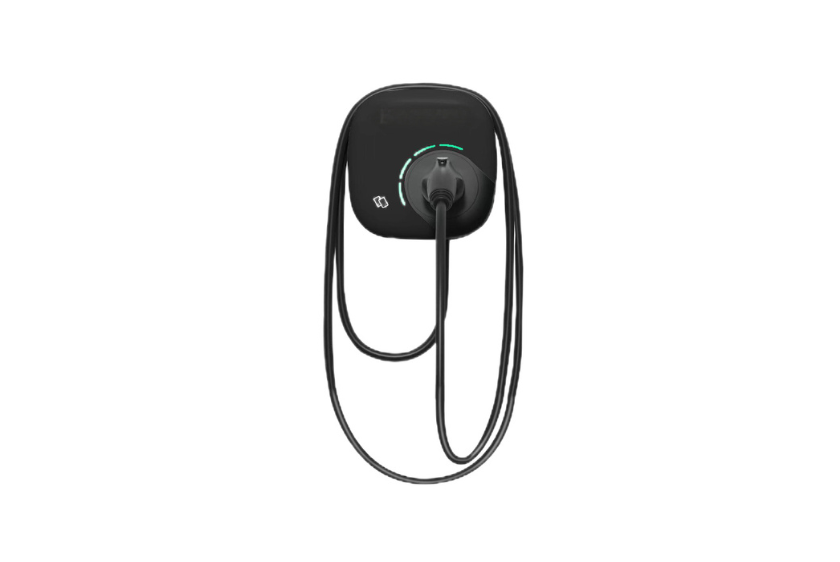

Mode 3: Charging Station with a 5M cable
Model:EVMR-A-7-22-1-W-EU/US/GB-S
EVMR-A-11-38-3-W-EU/US/GB-S
EVMR-A-22-38-3-W-EU/GB-S
Key Features:
OCPP 1.6J with LAN/WIFI/4G, Bluetooth connection, Public APP start and stop, IP55 Ingress protection.CE, ROHS, FCC approved. Support OEM/ODM service.
It can be easily installed on the wall. If the customer prefers the wallbox to be installed on the stand, we can provide the matching one.
Our products have passed various professional tests, and the quality is guaranteed, providing customers with safer charging methods.
| Power rating | 7kW / 11kW / 22kW |
| Charging interface type | GB/T 20234 / Type 1 SAE J1772 / Type 2 IEC 62196 |
| Input & Output voltage | AC220V±10% (1 Phase), AC380V±10% (3 Phase) |
| Output current | 16A / 32A |
| Frequency | 50Hz |
| Overvoltage protection | ✔ |
| Undervoltage protection | ✔ |
| Overload protection | ✔ |
| Short circuit protection | ✔ |
| Ground protection | ✔ |
| Over temperature protection | ✔ |
| Lightning protection | ✔ |
| WiFi / 4G / OCPP1.6 / LAN | Optional |
| RFID (2 user cards) | Optional |
| Display | No |
| LED Indicator light | ✔ |
| Warranty | 12–24 months |
| IP grade | IP55 |
| Working temperature | -25°C ~ +50°C |
| Working altitude | ≤ 2000m |
| Working humidity | 5%–95% no condensation |
| Cooling mode | Natural cooling |
| MTBF | ≥100,000H |
| Special protection | UV resistance |
| Standby power | 3W / 5W (With LCD) |
| Dimension | 230(H) × 220(W) × 110(D) mm |
| Cable length | 5m standard, other sizes customizable |
| Weight | 7.0kg (Including charging gun) |
| Wall-mounting bracket | ✔ |
| Ground-mounting pole | Optional |
| Certificate | CE |
