Complete Energy Recharging Solution for New Energy Vessel

Smart Robotic Arm for Vessels Charging

Compact Substation

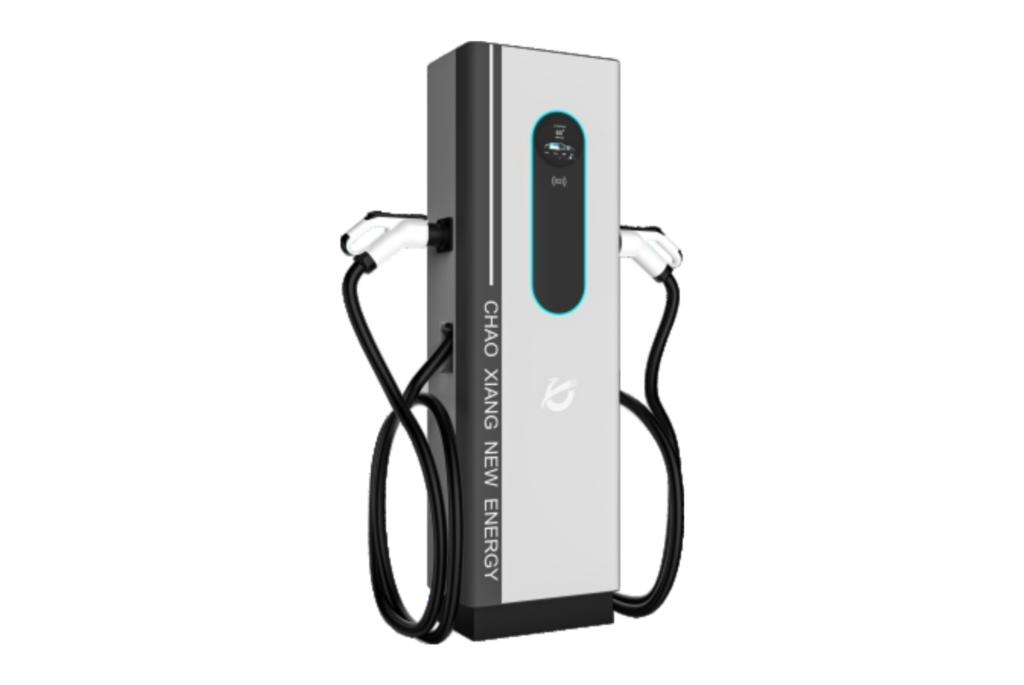

Air Cooled Terminal

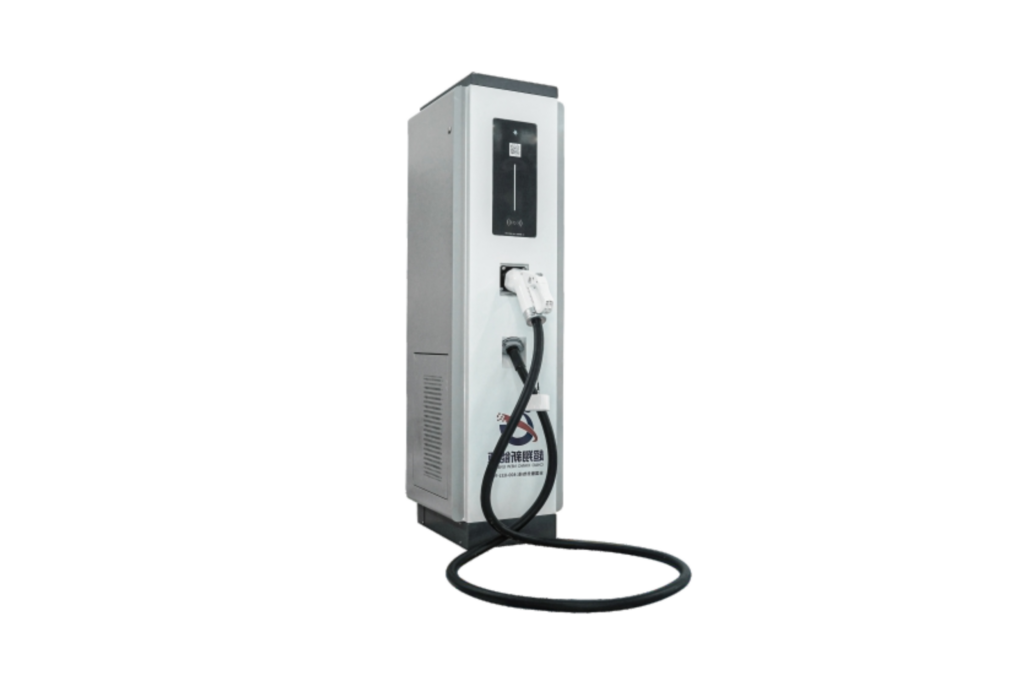

Liquid Cooled Terminal

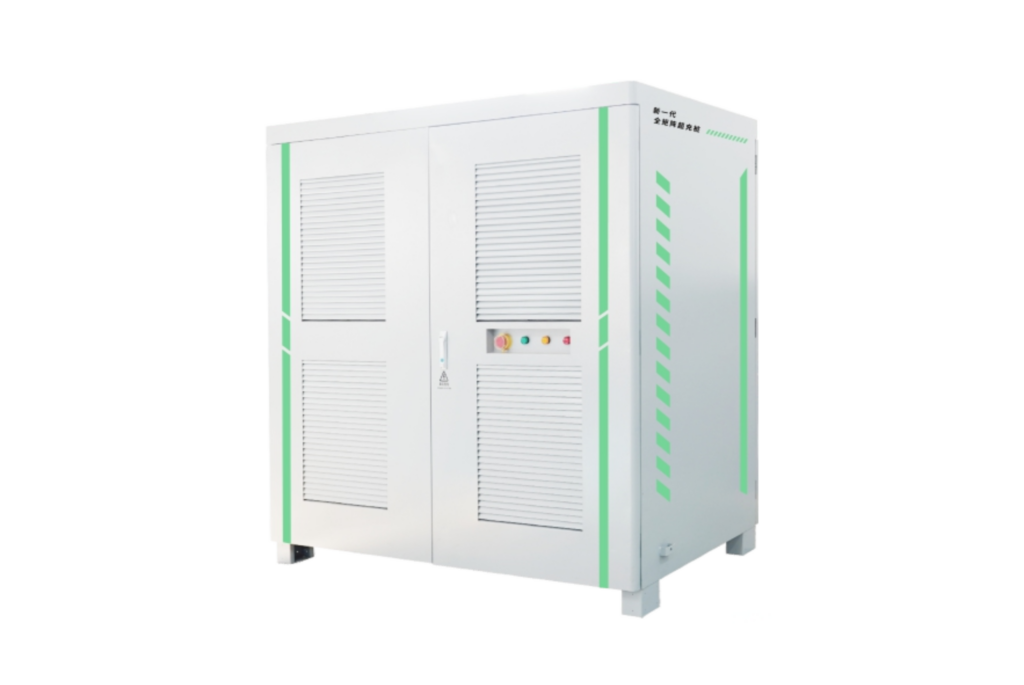

960kW Ultra-Fast Charging Power Stack

Safe & Stable

Designed in strict compliance with GB/T 18487.1-2023 national standard, featuring 8 protections against voltage anomaly, over-current, leakage, short-circuit, temperature anomaly, BMS faults, and emergency stop. The entire unit is rated IP65 for personnel and vessel safety during charging.

Safe & Stable

Optimised product processes and subjected to more rigorous environmental tests, offering superior resistance to salt spray and corrosion in extreme weather and special scenarios.

Specialised for New Energy Vessels

Ultra-fast charging system to realise air cooling current of 300A, liquid cooling current of 600A, enabling instant recharging for vessels.

Intelligent and Efficient

Full matrix topology, flexible allocation, on-demand invocation of charging modules, zero standby loss for modules, superior compatibility with 1000V voltage platform, supporting 960kW 20-gun requirements.

Parameter Basic Parameters
Product Model CX-D40DGR
(Power Stack)
CX-SDD250X2
(Air Cooled Terminal)
CX-SDD600X1
(Liquid Cooled Terminal)
Output Power 960kW 500kW 600kW
Cooling Air Cooling Air Cooling Liquid Cooling
Product Dimension 1900×1000×1900mm 460×300×1450mm 400×460×1600mm
Input Voltage AC380V ±15%
Input Frequency 50/60Hz
Output Voltage 150–1000VDC
Constant Power Range 300–1000VDC
Communication Interface 4G / Ethernet
Stable Voltage Accuracy ≤0.5%
Stable Current Accuracy ≤1%
Human Machine Interface 7-inch color touchscreen
Efficiency ≥95%
Power Factor ≥0.99
Uniform Current Coefficient ≤5%
Harmonic Current ≤5%
Noise ≤65dB
Metering Accuracy Level 1
IP Grade IP65
Standby Power ≤N×50W
Electrostatic Discharge Immunity Class 4
Surge Immunity Class 4
Working Temperature -30°C ~ 50°C
Working Humidity 5%~95% no condensation
Altitude ≤2000m
