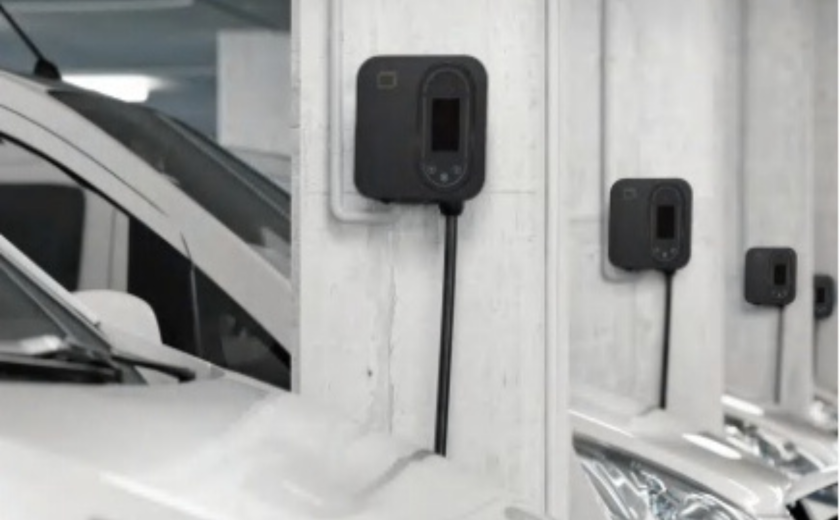

7kW-22kW Wall Box Station
Input/Output voltage AC 400V
Input frequency 50/60Hz
Max.output power 3-Phase up to 22kW(@400V32A)
Max.output current 32A for 3-Phase
Standard IEC 61851 ; GB/T18487
Certificate CE, RoHS
Over voltage protection Yes
Under voltage protection Yes
Over load protection Yes
Short circuit protection Yes
Leakage protection Yes
Over-temp protection Yes
Lightning protection Yes
LED indicators Yes
LCD screen 3.0-inch
RCD Type B (AC 30mA+DC 6mA)
WIFI/Bluetooth (WIFI 2.4GHz)
Protection degree IP65
Operation temperature -30- 60
Relative humidity ≤95%RH
Standby power consumption <5W
LCD DISPLAY
Date and Time
Charging time
Consumption(kWh)
Charging voltage/current /power
Total electricity(kWh)
Settings
| Item No | Power | Plugs | Commercial | Certificate |
|---|---|---|---|---|
| HNACWB-7 | 7kW | Type 2 | OCPP, 4G, WIFI | CE |
| HNACWB-11 | 11kW | Type 2 | OCPP, 4G, WIFI | CE |
| HNACWB-22 | 22kW | Type 2 | OCPP, 4G, WIFI | CE |
