Smart EV charging management

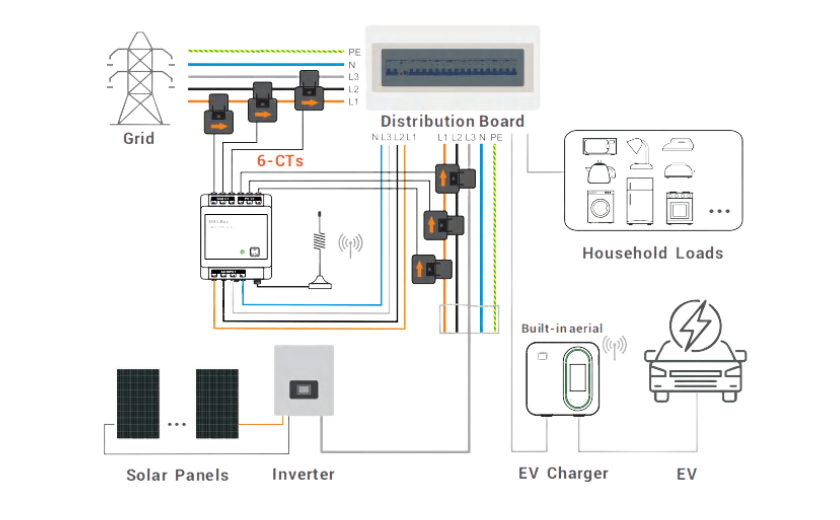

EM3 is used for EVE series AC EV charging stations, or other chargers compatible with the EM3 Box. When the EV charging station works simultaneously with other household appliances, EM3 Box can maintain the dynamic balance of the total household current, ensuring household safety and avoiding overloading of the grid.

If PV CT is installed, the EM3 Box can achieve multiple modes of use for both the grid and PV.

PV Mode: Almost no electricity is obtained from the grid.

Min+PV Mode: Minimal grid power and solar energy to meet the minimum 6A charging requirement for EV.

Fast Mode: Charge the EV as fast as possible based on the load of the grid and the current setting of the charging station.

1 / 3 -phase EM3 Box

Rated Voltage: AC110V~240V/400V

Input Frequency:50/60Hz

Standby power consumption:<1W

RF wireless distance:120m

RF wireless frequency:868/915MHz ( 868MHz )

Current collection: CT

Max. measurable current:100A
