60kWh High Voltage Cabinet BESS
High Voltage 60kWh Cabinet Battery Energy Storage System (BESS)
The High Voltage 60kWh Cabinet Battery Energy Storage System is a modular, rack-mounted energy storage solution designed for commercial, industrial, and large residential applications. Built with lithium iron phosphate (LFP) cells, it delivers high safety, long cycle life, and stable performance. The system supports high-voltage operation, fast charging and discharging, and seamless integration with PCS, UPS, and inverters. With advanced protection, intelligent battery management, and scalable cabinet design, it ensures reliable energy storage, peak shaving, backup power, and efficient energy management for demanding applications.

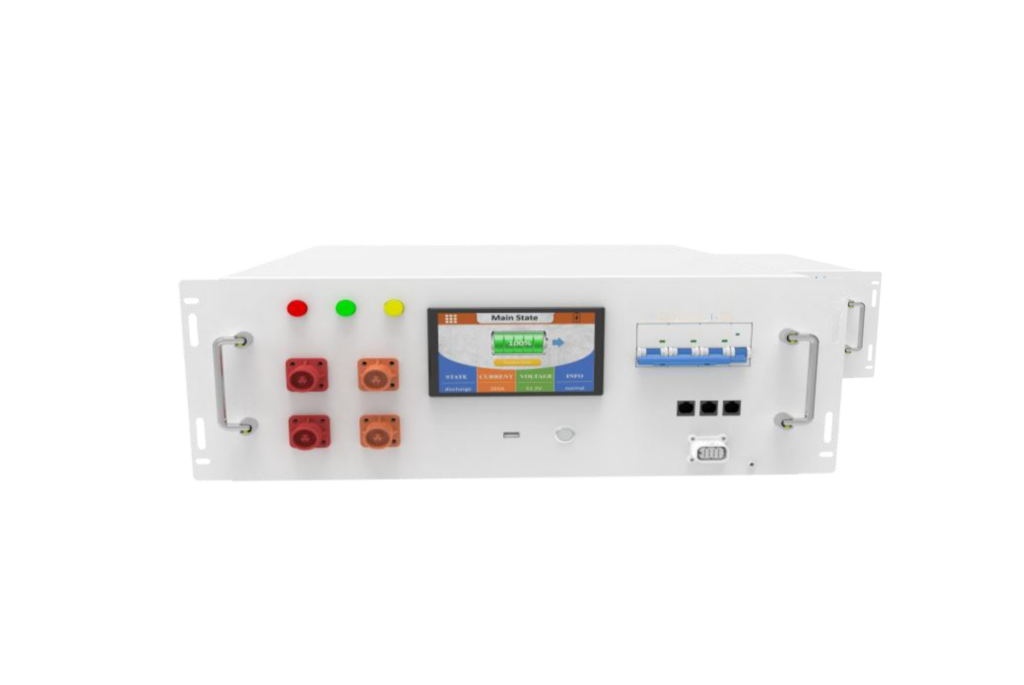

Communication Interface with RBMS
CAN/RS485
Communication Interface with PCS/UPS/Inverter
CAN/RS485
Support IAP upgrade
YES
Support HMI Display & Parameters Setting
YES
Dry Contact Output
YES
Dry Contact Input
YES
Qty of RBMS in Parallel
10 Sets(MAX)
High Voltage Lithium Battery 60kWh Solution
Operating Parameters
RBMS
| Operating Voltage Range | 518.4V – 700.8V |
| Discharge Cut-Off Voltage | 480V |
| Max. Discharge Current | 100A (Continuous) |
| Peak Discharge Current | 150A (3s) |
| Standard Charging Current | 20A (0.2C) |
Battery Module
| Nominal Voltage | 51.2 Vdc |
| Nominal Capacity | 100Ah |
| Nominal Energy | 5120Wh |
| Battery Chemistry | 3.2V LiFePO₄ |
| Cell Connectivity | 16S1P |
| Weight | 44 kg |
System Parameters
| Nominal Voltage | 614.4 Vdc |
| Nominal Capacity | 100 Ah |
| Nominal Energy | 61,440 Wh |
| Battery Chemistry | 3.2V LiFePO₄ |
| Cell Connectivity | 192S1P |
| Number of Modules | 12 Pcs in Series |
| Efficiency (Round Trip) | ≥98% |
| Self-Discharge Rate | <3% Monthly |
| Max. In Parallel | 10 Pcs |
| Max. In Series | Not Allowed |
| Cycle Life | 8000 Cycles (0.2C, 25°C @ 80% DoD) |
| Origin | Shenzhen, China |
| BMS Built-in | Yes |
| Design Life | 20 Years |
| Discharge Temperature | -20°C ~ 55°C |
| Charge Temperature | 0°C ~ 55°C |
| Storage Temperature | -10°C ~ 30°C |
| Ingress Rating | IP21 |
| Dimensions (L × W × H) | 570 × 440 × 1800 mm |
| Weight | ≈660 kg |
| Mounting Options | Rack Cabinet |
| Indicator State | ALM / RUN / SOC |
| Screen | Optional |
| Fan | Optional |
| Terminals | Fast Plug-In |
| Case Material | SPCC Steel |
