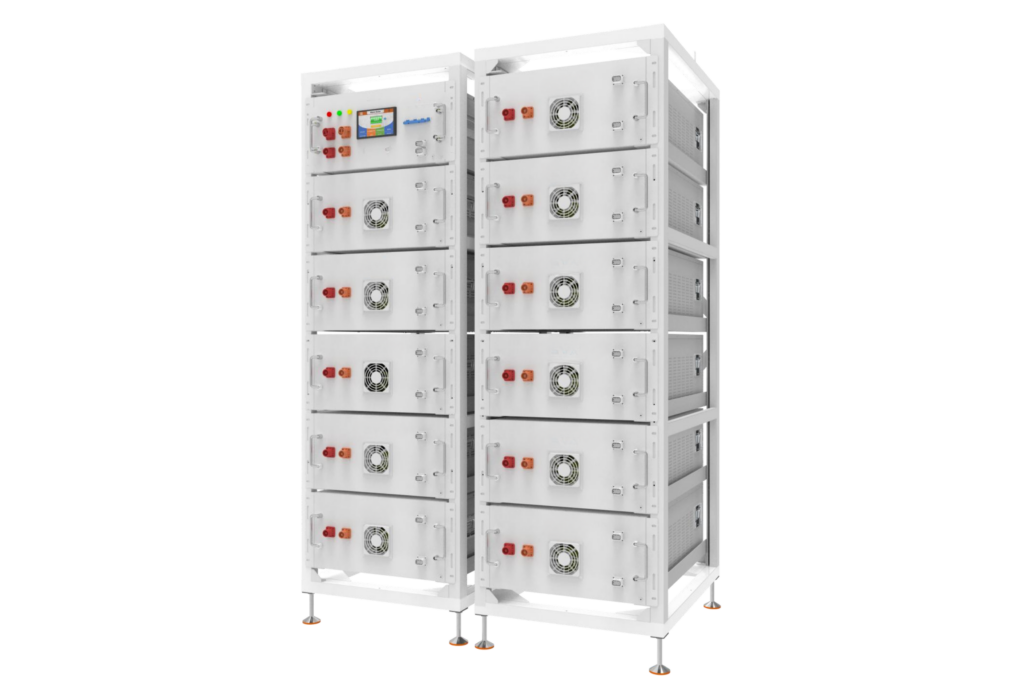

High Voltage Lithium Battery – 160kWh Cabinet BESS
High Voltage Lithium Battery – 160kWh Cabinet BESS
The High Voltage Lithium Battery – 160kWh Cabinet BESS is a robust, modular energy storage solution designed for commercial, industrial, and utility-scale applications. Built with advanced lithium iron phosphate (LFP) technology, it delivers high efficiency, long service life, and reliable performance in demanding energy environments.
Engineered in a cabinet-based configuration, this system supports scalable installation while maintaining high safety standards and operational consistency. Its high-voltage architecture enables efficient energy management, fast discharge capability, and seamless integration with solar, grid, and hybrid power systems.
Communication Interface with RBMS
CAN/RS485
Communication Interface with PCS/UPS/Inverter
CAN/RS485
Support IAP upgrade
YES
Support HMI Display & Parameters Setting
YES
Dry Contact Output
YES
Dry Contact Input
YES
Qty of RBMS in Parallel
10 Sets(MAX)
High Voltage Lithium Battery 160kWh Solution
Operating Parameters
RBMS
| Operating Voltage Range | 475.2V to 642.4V |
| Discharge Cut-Off Voltage | 440V |
| Max. Discharge Current | 150A (Continuous) |
| Peak Discharge Current | 200A (3s) |
| Standard Charge | 56A (0.2C) |
Battery Module
| Nominal Voltage | 51.2 Vdc |
| Nominal Capacity | 280 Ah |
| Nominal Energy | 14336 Wh |
| Battery Chemistry | 3.2V LiFePO4 |
| Cell Connectivity | 16S1P |
| Weight | 118 kg |
System Parameters
| Nominal Voltage | 563.2 Vdc |
| Nominal Capacity | 280 Ah |
| Nominal Energy | 157,696 Wh |
| Battery Chemistry | 3.2V LiFePO4 |
| Cell Connectivity | 176S1P |
| Number of Modules | 11 Pcs in Series |
| Efficiency (Round Trip) | ≥98% |
| Self-Discharge Rate | <3% Monthly |
| Max. in Parallel | 10 Pcs |
| Max. in Series | Not Allowed |
| Cycle Life | 8000 Cycles (0.2C, 25°C, 80% DoD) |
| Origin | Shenzhen, China |
| BMS Built-in | Yes |
| Design Life | 20 Years |
| Discharge Temperature | -20°C ~ 55°C |
| Charge Temperature | 0°C ~ 55°C |
| Storage Temperature | -10°C ~ 30°C |
| Ingress Rating | IP21 |
| Dimensions (L × W × H) | 790 × 600 × 1750 mm × 2 |
| Weight | ≈ 1.4 Tons |
| Mounting Options | Rack Cabinet |
| Indicator State | ALM / RUN / SOC |
| Screen | Optional |
| Fan | Optional |
| Terminals | Fast Plug-In |
| Case Material | SPCC Steel |
