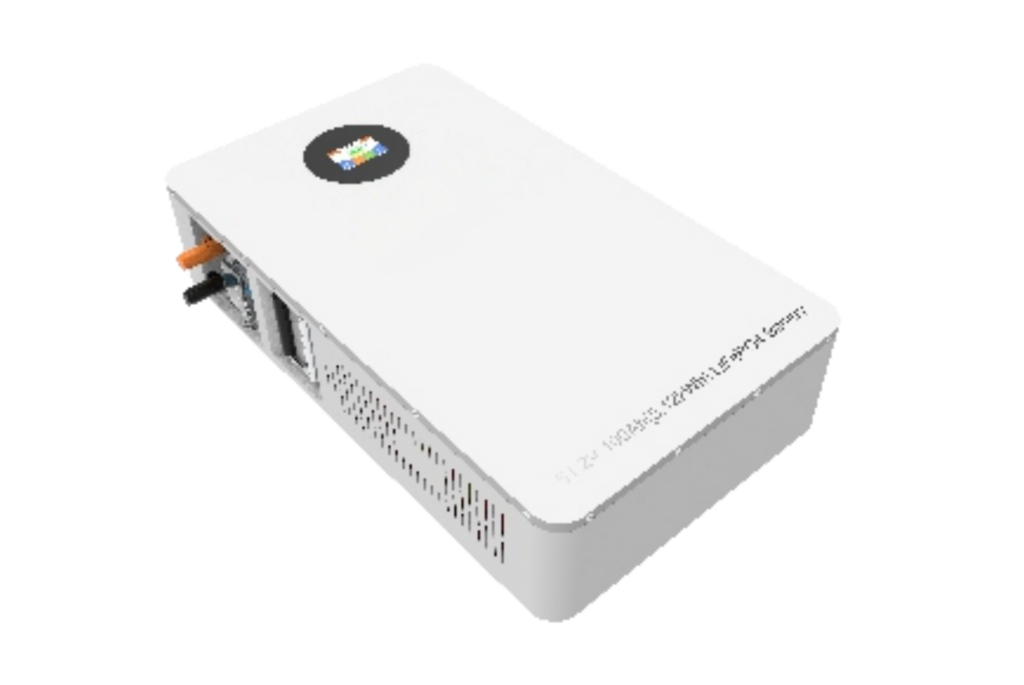

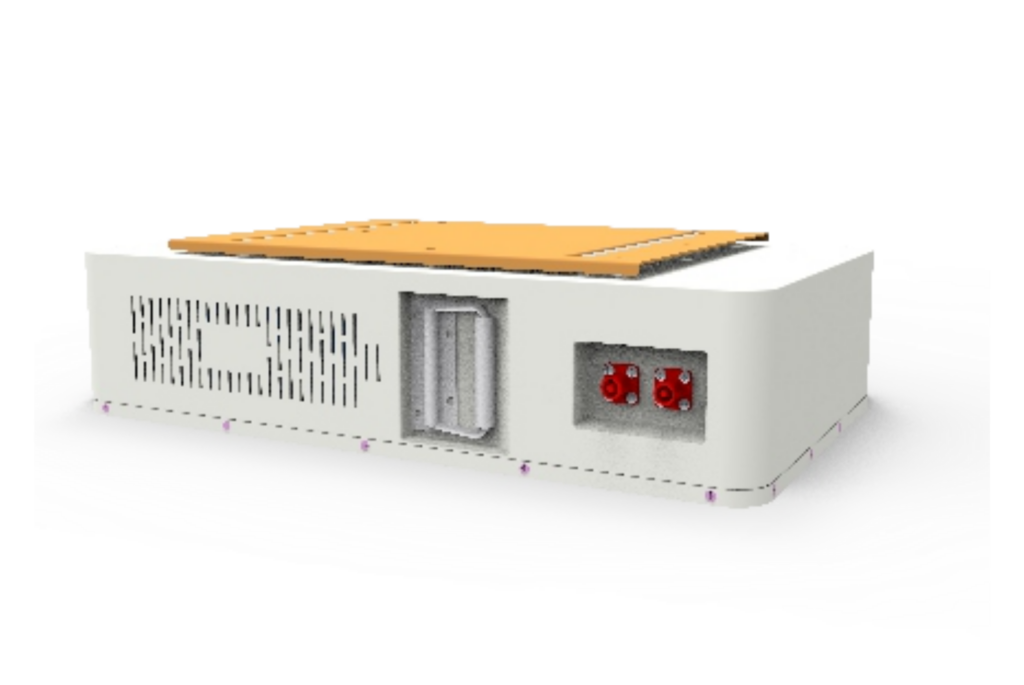

Low Voltage Lithium Iron Phosphate (LFP) Battery
Grade A LFP(lithium iron phosphate) cells to ensure safety and performance
LFP (lithium iron phosphate) cell to ensure the highest safety
Product Details
Key Features:
High Safety with LFP Cells: Utilizes Grade A Lithium Iron Phosphate (LFP) cells to ensure the highest safety and performance.
Long Lifespan: Long cycle life with a minimum of 6,500 cycles, ensuring longevity and reliability.
Customizable: Available in multiple modes of operation, customized logo, and shell colors.
Smart Connectivity: Equipped with WiFi and Bluetooth for easy monitoring and control.
Energy Efficient: Provides optimal self-consumption during the day and night, supporting both solar radiation and public grid independence.
Product Details:
Built-in Battery Management System (BMS) to protect against temperature, current, voltage, and state of charge (SoC) fluctuations.
Extra long cycle life with 6,500 cycles at 80% Depth of Discharge (DoD).
Compatible with most inverters available in the market.
Ability to connect up to 16 units in parallel to meet varying energy storage needs.
| General Information | Rated Voltage | 51.2Vdc | |
| Rated Capacity | 100Ah | 200Ah | |
| Rated Energy | 5.12kWh | 10.24kWh | |
| Output Voltage Range | 44.8V – 57.6V | ||
| Charging Voltage (Max) | 58.4V | ||
| Cut-off Voltage | 40V | ||
| IP Rating | IP52 | ||
| Recommended Charging Current | 20A | 40A | |
| Max. Discharging Current | 100A | ||
| Efficiency (Round Trip) | ≥98% | ||
| Physical Information | Dimension (L×W×H) | 650×385×155 mm | 680×413×232 mm |
| Weight | ≈45 kg | ≈84 kg | |
| Humidity | 5%–95% RH | ||
| Charging Temperature | 0°C – 55°C | ||
| Discharging Temperature | -20°C – 55°C | ||
| Storage Temperature | -10°C – 30°C | ||
| Cycle Life (0.2C @25°C, 80% DoD) | ≥6500 cycles | ||
| Design Life | ≥15 years | ||
| Mounting Options | Wall or Floor | ||
