Hybrid Solar Air Conditioner Window type

Hybrid Solar Air Conditioner Window type

The WATT Hybrid Solar Window Air Conditioner is a compact, energy-efficient cooling solution designed for residential and light commercial spaces. It combines solar DC power and grid AC power to deliver reliable cooling while significantly reducing electricity consumption—without the need for batteries, inverters, or charge controllers.

This window-mounted system is ideal for locations where space is limited but energy savings are a priority.

Features

100% Energy Saving

Up to 100% Savings during the daytime

Wide Operating

Temperature Range between -10°C to +58°C (T3)

Savings

No Inverter, Battery, or Charge controller needed

Auto Balance

AC/DC auto balance

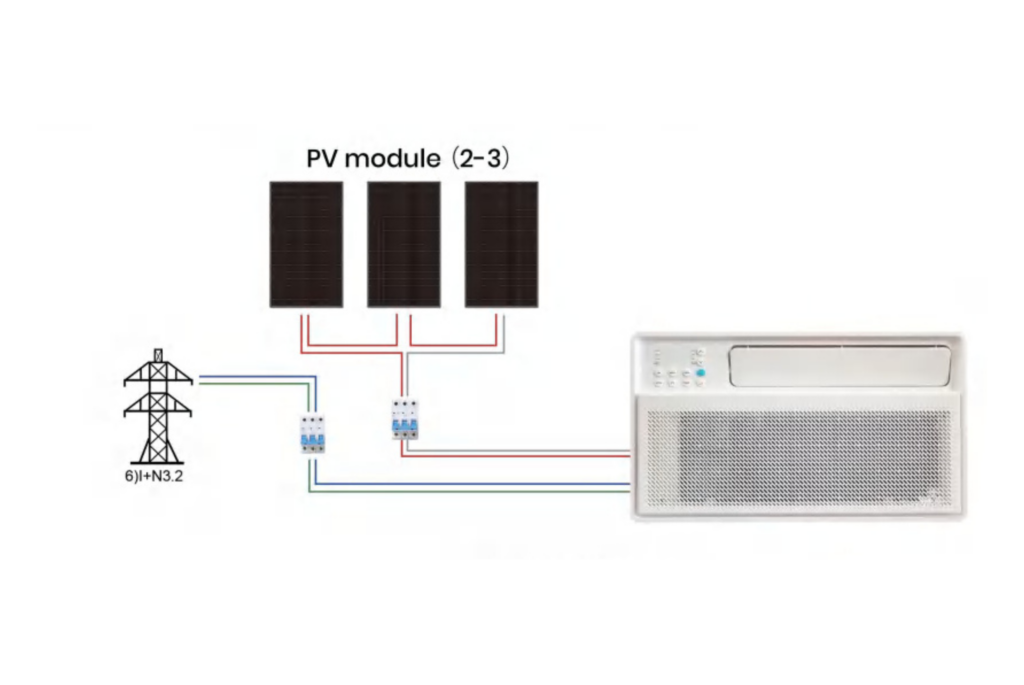

Working Daigram

Technical Specifications(Hybrid Wind Type)

AC Technical Specifications
Electrical Input
AC Input ph-V-Hz 1 Ph, 115V~ / 240V~
PV Input V DC 80–350V
Rated Performance
Rated Capacity Btu/h 12000
Rated CEER Btu/W·h 15.0
Rated Input (Cooling) W 1190
Rated Current A 12.0
Cooling Current A 10.3 / 4.95
Standby Power W 1.1
Estimated Yearly Energy Cost $ 61
Cooling & Refrigerant
Moisture Removal L/h 1.75
Max Input Consumption W 1280
Max Current A 12.5
Refrigerant Type R32
Refrigerant Charge g 330
Maximum Pressure (H/L) psi 915 / 435 (6.3 / 3.0 MPa)
Air Flow & Noise
Indoor Air Flow (Hi/Med/Lo) m³/h 450 / 330 / 250
Indoor Air Flow (Hi/Med/Lo) CFM 265 / 195 / 147
Indoor Noise (Cool) dB(A) 55 / 49 / 42 / 42
Indoor Noise (Fan) dB(A) 54 / 46 / 40 / 38
Outdoor Air Flow m³/h 730 / 610 / 500
Outdoor Noise Level dB(A) 61 / 56 / 48
Installation & Dimensions
Plug Type 14#×3 / LCDI
Plug Face NEMA 5-15P
Power Cord Length mm / ft 1980 mm / 6.5 ft
Operation Temperature (Indoor) °C 16–31
Operation Temperature (Outdoor) °C 18–43
Unit Dimension (W×D×H) mm 525 × 489 × 340
Net Weight kg 26.6
Gross Weight kg 28.5 / 29.5
