Off-Grid Solar Air Conditioner
Off-Grid Solar Air Conditioner
Solar off-grid with battery storage solar air conditioners is ideal for places with no power grid or power stability issues. particularly for remote telecom stations, container houses, motor homes, remote locations, load shedding places, boating and island locations. As the latest advancement of our technology ,this solar air conditioner can use 100% solar power.
Features
- High-SEER Brushless inverter DC permanent magnet compressors
- Fast Cooling around 30s / Powerful heating within Iminute
- Wide operating temperature range: -10°C to + 58°C
- Anti-Corrosion Technology giving greater corrosion resistance for both
- Outdoor and indoor unit
- Eco-Friendly R32 Refrigerant
- Low energy consumption
- Quiet Indoor and Outdoor Unit
(As Low As 26dB) - 100% Off Grid
100%
100% off Grid
Wide Operating Temperature
Temperature Range between -10°C to +58°C
MaX SEER35
DC-driven
Battery
Battery Powered
Technical Specifications (Off-Grid)
| Model 1 | Model 2 | Model 3 | ||
|---|---|---|---|---|
| Power Supply | ||||
| Max electric peak current | A | 15 | 15 | 15 |
| Rated Voltage | V~ | 208-240 | 208-240 | 208-240 |
| Rated Frequency | Hz | 50/60 | 50/60 | 50/60 |
| Min / Max Voltage | V~ | 42 / 58 | 42 / 58 | 42 / 58 |
| Solar DC Current | ||||
| Max Current | A | 25 | 35 | 50 |
| Rated Current | ||||
| Cooling Rate Current (T1) | A | 19.00 | 28.00 | 40.00 |
| Cooling Rate Current (T3) | A | 22.00 | 31.00 | 43.00 |
| Heating Rate Current | A | 20.00 | 28.00 | 41.00 |
| Rated Power | ||||
| Cooling Rate Power (T1) | W | 860 | 1340 | 1920 |
| Cooling Rate Power (T3) | W | 963 | 1460 | 2060 |
| Heating Rate Power | W | 905 | 1320 | 1960 |
| Efficiency | ||||
| EER | W/W | 4.02 | 3.74 | 3.76 |
| SEER | Btu/W | 23.00 | 21.00 | 20.00 |
| COP | W/W | 3.87 | 4.01 | 3.75 |
| HSPF | Btu/W | 9.70 | 9.55 | 9.60 |
| Application Area | m² | 14~24 | 21~30 | 30~45 |
Off Grid Working Daigram

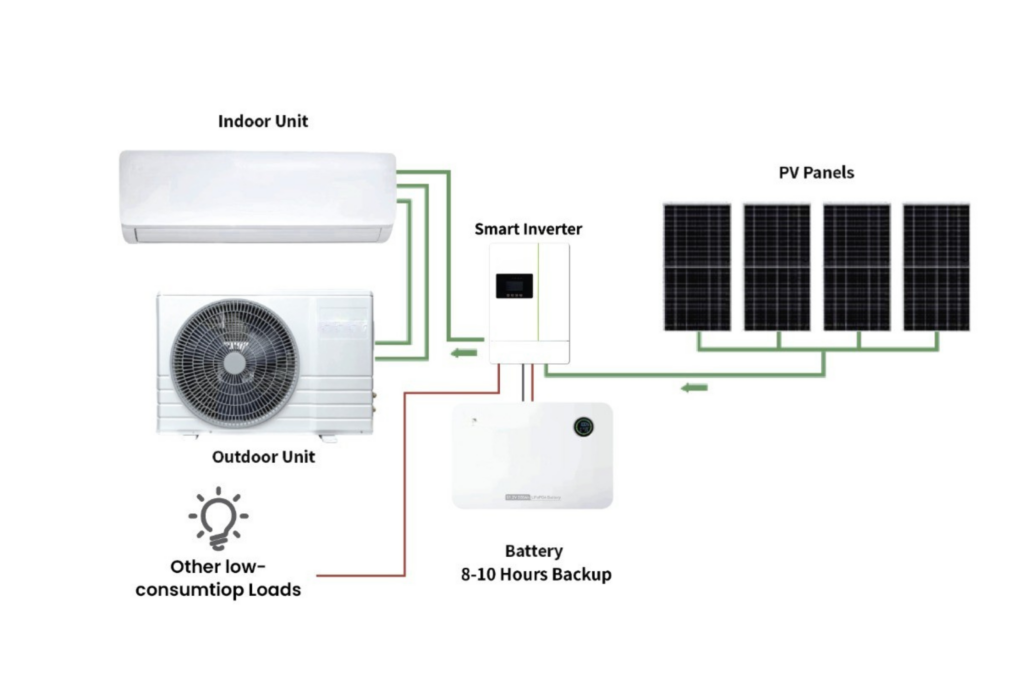

Solar+Smart Inverter+Batteries (No Grid or weak Grid)
This off-grid solar air conditioning system consists of Shinson solar PV panels, smart inverters, and batteries. During the day, the solar panels power the air conditioner while simultaneously charging the batteries. At night, the stored energy in the batteries supplies power to the air conditioner. The Shinson smart inverter and battery system optimize energy management for maximum efficiency, ensuring up to 8-10 hours of reliable nighttime backup. In addition, the smart inverter can also power other low-consumption appliances such as LED lights, televisions, and refrigerators.

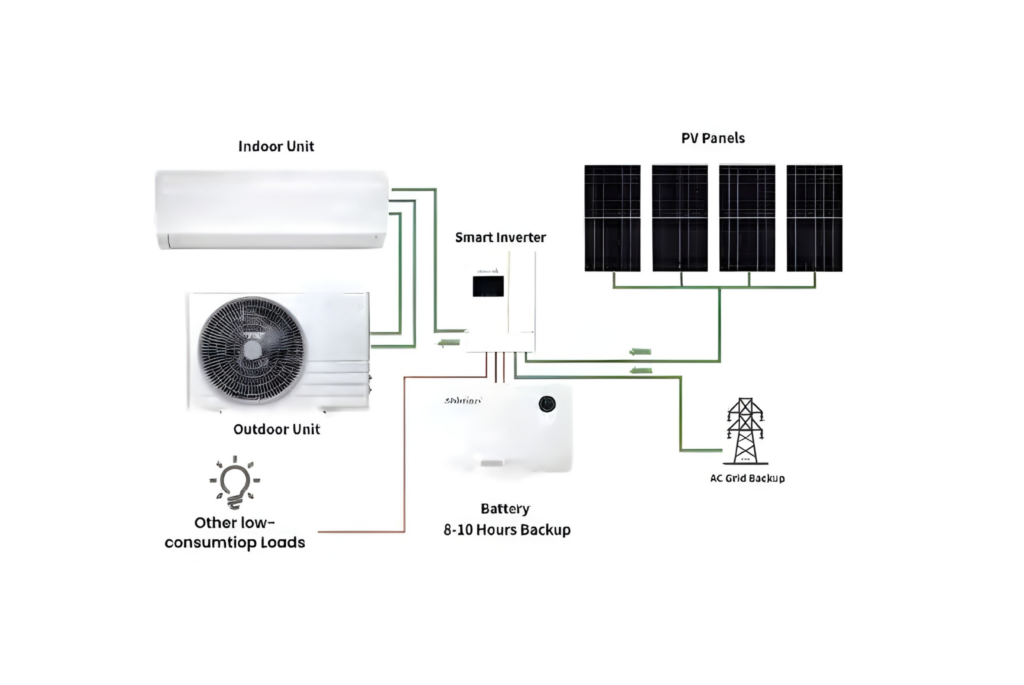

Solar+Smart Inverter+Batteries+Grid (With Grid)
This off-grid solar air conditioning system consists of Shinson solar PV panels, smart inverters, and batteries. During the day, the solar panels power the air conditioner while simultaneously charging the batteries. At night, the stored energy in the batteries provides power to the air conditioner.
When there are continuous rainy or cloudy days and solar generation is insufficient, the grid can serve as a backup power source to recharge the batteries. The Shinson smart inverter and battery system intelligently manage energy flow with maximum efficiency, ensuring 8-10 hours of reliable nighttime operation.
Additionally, the smart inverter can also supply power to other low-consumption appliances such as LED lights, televisions, and refrigerators.
