LiFePO4 LiTHIUM Battery Pack AN-LPB-Nplus
LiFePO4 LiTHIUM Battery Pack AN-LPB-Nplus
The Nplus LiFePO4 Lithium Battery Pack provides an efficient and reliable energy storage solution for both residential and commercial applications. Built with a modular design and high-capacity performance, this battery is engineered to deliver long-term energy storage, ensuring stable and continuous power supply. Its robust design makes it suitable for a variety of energy storage needs, from off-grid systems to backup power setups.
features
Long Service Life: The Nplus series offers an impressive 8-year service life, ensuring a reliable and durable energy storage solution.
Modular Design: Compact and lightweight, the battery can be easily integrated into your system with a user-friendly design.
High Charging & Discharging Efficiency: Supports 1C charging and discharging rates, allowing quick energy storage and delivery.
Smart Battery Management: Incorporates intelligent charge/discharge cycle management to prolong battery life.
Multiple Parallel Machines: Easily expandable with automatic address acquisition, allowing you to scale the energy storage system as needed.
Advanced Safety Features: Built-in BMS (Battery Management System), thermal protection, and short-circuit safeguards to ensure safety and reliability.
Multiple Communication Interfaces: Features RS485, RS232, and CAN for seamless integration with your energy management system.
Certifications: CE, ROHS, UN38.3, and MSDS certifications for quality and safety assurance.
IP54 Protection: Dust and water-resistant, making it suitable for outdoor and harsh environments.
Easy Installation: Can be mounted on walls or floors, providing flexible installation options.

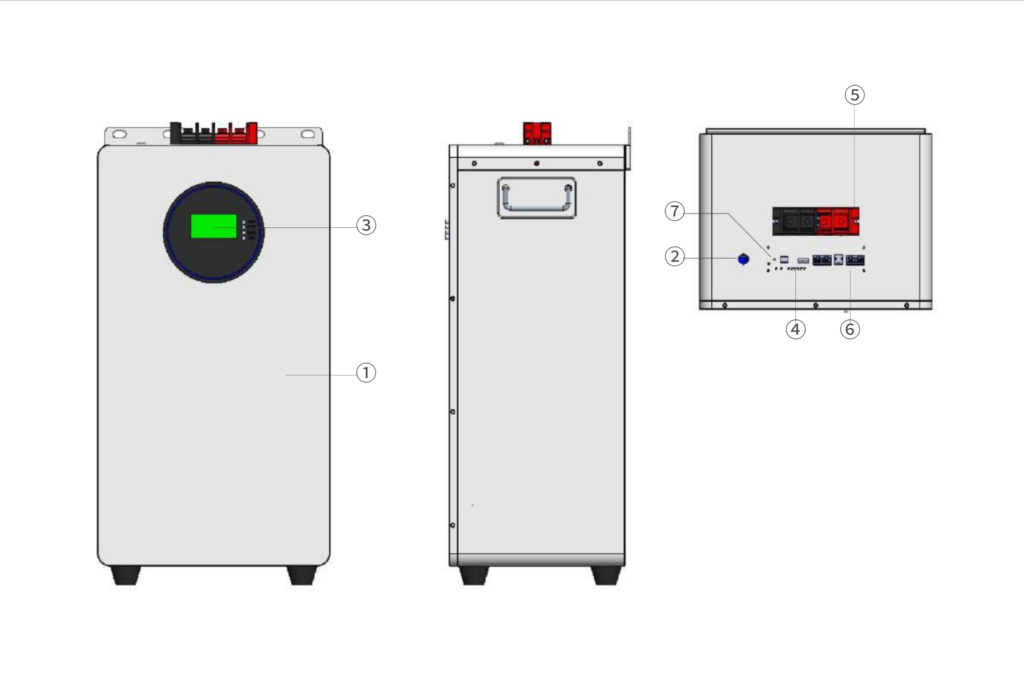

–Cover
–Weak Switch
–Display Screen Status lamp
–Output Terminal.
–Communication Interface
–Reset Switch
| Battery Type | LiFePO4 | ||||
|---|---|---|---|---|---|
| Typical Capacity (Ah) | 200Ah | 100Ah | 200Ah | 300Ah | 314Ah |
| Typical Voltage (V) | 25.6V | 51.2V | 51.2V | 51.2V | 51.2V |
| Energy Storage (kWh) | 5 kWh | 5 kWh | 10 kWh | 15 kWh | 16 kWh |
| Voltage Working Range (V) | 22.4–29.2V | 44.8–58.4V | 44.8–58.4V | 44.8–58.4V | 44.8–58.4V |
| Working Temperature (°C) |
Charge: 0–55°C Discharge: -20–60°C |
||||
| Storage Temperature (°C) | -20–40°C | ||||
| Standard Charge Current (A) | 0.5C | ||||
| Max Charge Current (A) | 200A | 100A | 200A | 200A | 200A |
| Recommended Charge Current (A) | 100A | 50A | 100A | 150A | 150A |
| Max Discharge Current (A) | 200A | 100A | 200A | 200A | 200A |
| SOC Accuracy | <8% | ||||
| Cycle Life | 5000 cycles | 10000 cycles | |||
| Dimensions (mm) | 370 × 400 × 280 | 370 × 400 × 280 | 370 × 670 × 280 | 800 × 380 × 250 | 800 × 380 × 250 |
| IP Grade | IP54 | ||||
| Cooling | Natural | ||||
| Communication | RS232, RS485, CAN | ||||
| Certifications | CE, ROHS, UN38.3, MSDS | ||||
