Off-Grid Solar Inverter
This advanced Off-Grid Solar Inverter (EVO Series) offers exceptional flexibility with dual voltage support (12VDC and 24VDC). With a maximum power output of 2300W at 12VDC and 4200W at 24VDC, this inverter provides versatile energy solutions for both residential and small-scale commercial applications. Its Pure Sine Wave output ensures stable power, while its MPPT technology optimizes solar energy harvesting, making it an ideal choice for energy efficiency.
features
Dual Voltage Support: Operates on both 12VDC and 24VDC, providing flexible solutions for various energy needs.
Pure Sine Wave Output: Delivers clean and stable power, making it perfect for sensitive electronics and home appliances.
Smart Battery Charging: Optimizes battery performance by intelligently managing charge cycles, extending battery life.
MPPT Solar Charger: With a wide voltage range of 55V to 500V, it ensures maximum solar energy conversion.
Automatic Restart: Powers back on automatically after a grid outage, ensuring continuous energy supply.
Cold Start Function: Allows the inverter to operate even without battery power when the utility grid is unavailable.
Overload/Overtemperature Protection: Prevents damage from extreme conditions, offering reliable protection.
Solar & Utility Grid Support: Can work simultaneously with solar power and the utility grid to power various loads.
Remote Monitoring: Enables easy system monitoring via Wi-Fi connectivity for efficient control.
RS485 Communication: Ensures seamless integration with Battery Management Systems (BMS) for better control.

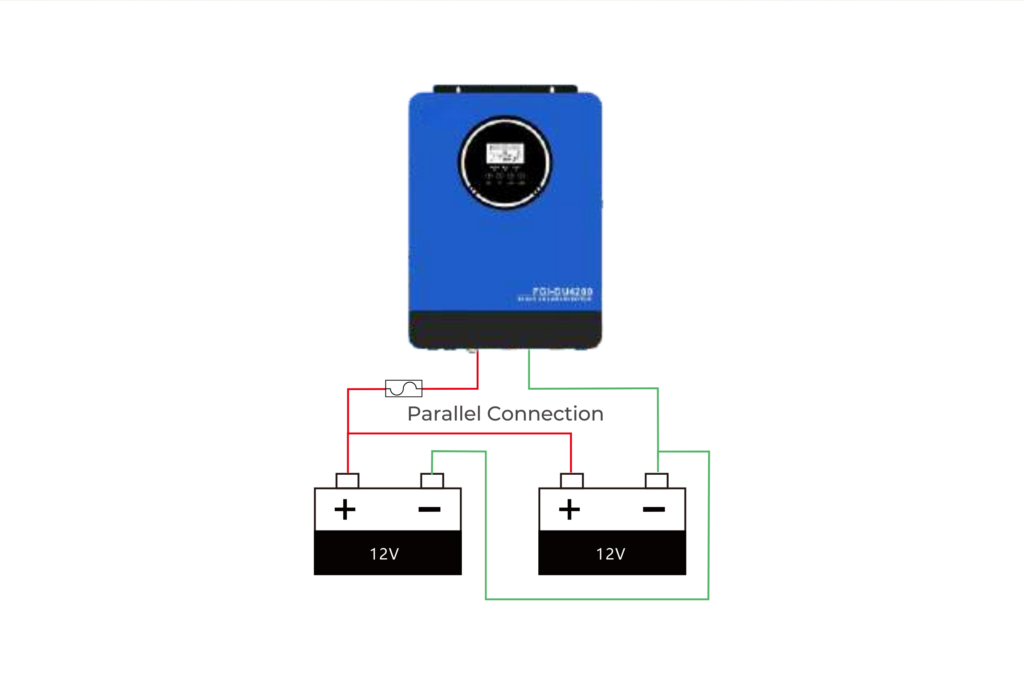

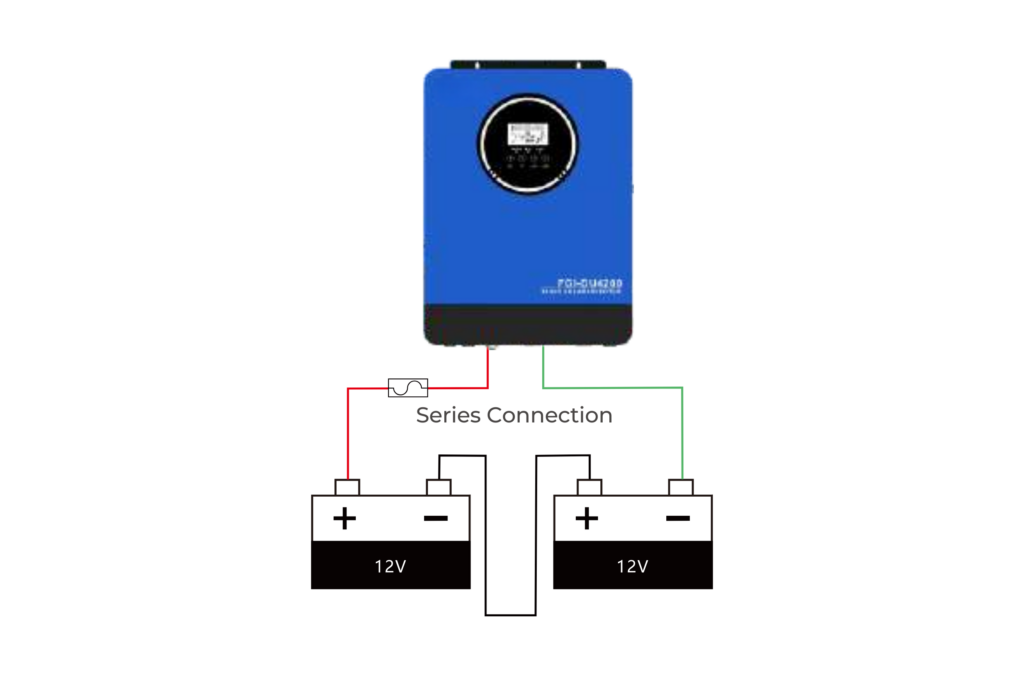

This diagram is telling what "dual use on one inverter"means
is working at 2 voltages and carrying different loads
Freely match 12VDC or 24VDC according to user needs (Maximum output 2300W for 12V system and maximum output 4200W for 24V system)
Product Data Sheet
| Battery Voltage | 12V | 24V |
| Rated output power | 2300VA / 2300W | 4200VA / 4200W |
| INPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range |
170-280VAC (For Personal Computers) 90-280VAC (For Home Appliances) |
|
| Frequency Range | 50 Hz / 60Hz (Auto Sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | 230VAC ±5% | |
| Surge Power | 4600W | 8400W |
| Efficiency (Peak) Battery to INV | 94% | |
| Transfer Time |
10ms (For Personal Computers) 20ms (For Home Appliances) |
|
| BATTERY & AC CHARGE | ||
| Battery Voltage | 12V | 24V |
| Floating Charge Voltage | 13.5V | 27V |
| Overcharge Protection | 16VDC | 32VDC |
| Maximum Charge Current | 100A | |
| SOLAR CHARGE | ||
| Maximum PV Array Power | 4000W | |
| MPPT Range @ Operating Voltage | 55-500VDC | |
| Maximum PV Array Open Circuit Voltage | 500VDC | |
| Maximum Charge Current | 100A | |
| PHYSICAL | ||
| Dimension (H×W×D) mm | 405 × 305 × 108 | |
| Net Weight (kgs) | 6.7 | |
| Communication interface | RS485 / RS232 / BMS / WiFi / Bluetooth | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
| Operating Temperature | -20°C to 55°C | |
| Storage Temperature | -20°C to 60°C | |
