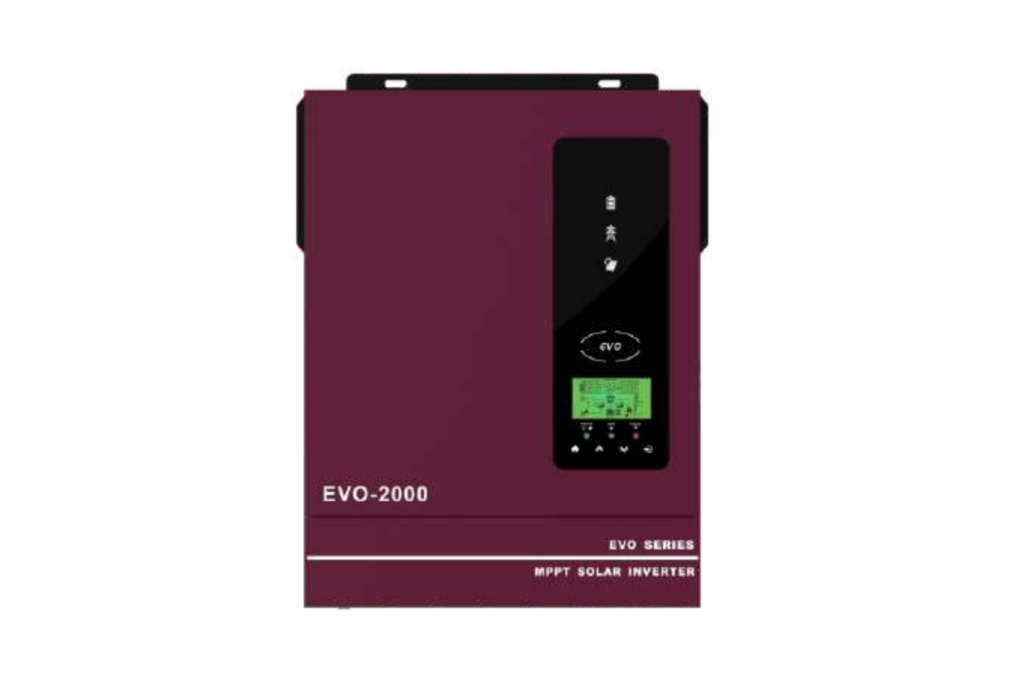

Off Grid Solar Inverter (EVO Series)
Off Grid Solar Inverter (EVO Series)
The EVO Series of Off-Grid Solar Inverters (AN-SCI-EVO Series) are designed to maximize efficiency and provide reliable power in off-grid systems. These inverters come with a built-in 80A MPPT (Maximum Power Point Tracking) solar controller, offering optimized energy generation. Available in multiple power ratings (2000W and 3200W), these inverters are suitable for various off-grid applications, including residential and commercial setups.
Max. Efficiency 98%
80A MPPT
IP21 Ingrees Protection
Features of Module
Pure Sine Wave Inverter: Ensures clean, stable power for all types of devices, including sensitive electronics.
80A MPPT Solar Controller: Maximizes energy collection from solar panels for efficient battery charging.
High Input Voltage Range: Supports PV input from 30-400VDC, providing flexibility for different solar panel setups.
Durable Design: Built-in anti-dust kit for use in harsh environments, along with IP21 ingress protection for reliable performance.
Battery Compatibility: Compatible with lithium batteries, ensuring long-term, efficient energy storage.
| Model | 2000VA / 1600W | 3200VA / 3000W |
|---|---|---|
| AC INPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range |
170–280 VAC (For Personal Computers) 90–280 VAC (For Home Appliances) |
|
| Frequency Range | 50 Hz / 60 Hz (Auto sensing) | |
| AC OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | |
| Surge Power | 4000VA | 6400VA |
| Efficiency (Peak) PV to INV. | 98% | |
| Efficiency (Peak) Battery to INV. | 94% | |
| Transfer Time |
10 ms (For Personal Computers); 20 ms (For Home Appliances) |
|
| Waveform | Pure Sine Wave | |
| BATTERY & AC CHARGER | ||
| Battery Voltage | 12VDC | 24VDC |
| Floating Charge Voltage | 13.5VDC | 27VDC |
| Overcharge Protection | 16VDC | 33VDC |
| Maximum AC Charge Current | 60A | |
| SOLAR CHARGER | ||
| Maximum PV Array Power | 2000W | 3000W |
| MPPT Range @ Operating Voltage | 30–400VDC | |
| Maximum PV Array Open Circuit Voltage | 400VDC | |
| Maximum Charging Current | 80A | |
| PHYSICAL | ||
| Dimension (D × W × H) mm | 360 × 270 × 100 | 390 × 270 × 100 |
| Net Weight (kg) | 4.4 | 5.4 |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
| Operating Temperature | -10°C to 50°C | |
| Storage Temperature | -15°C to 60°C | |
