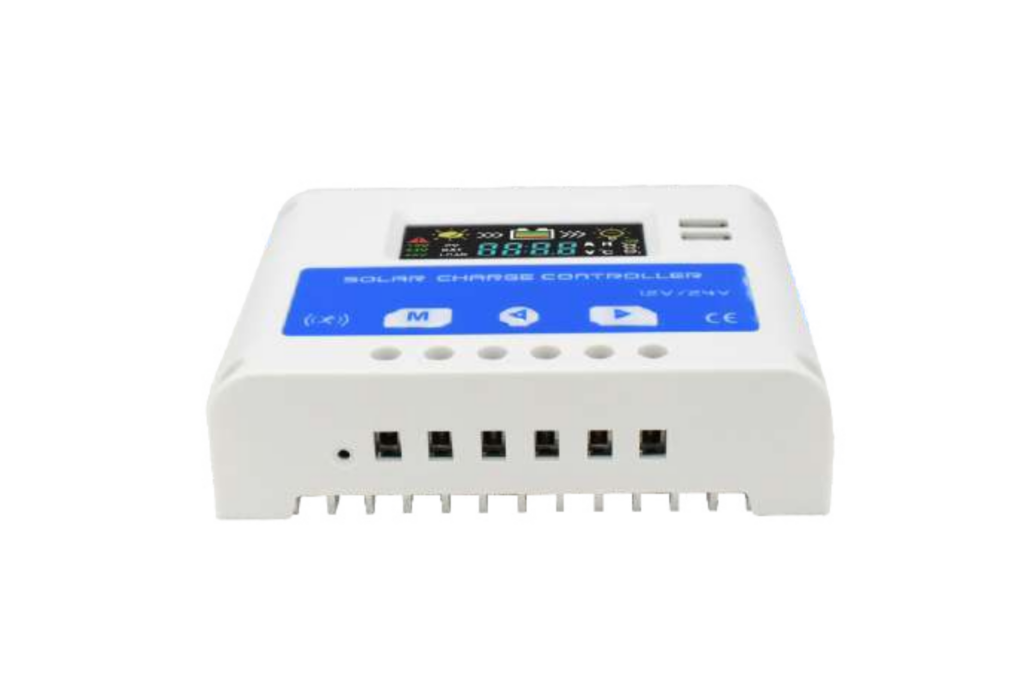

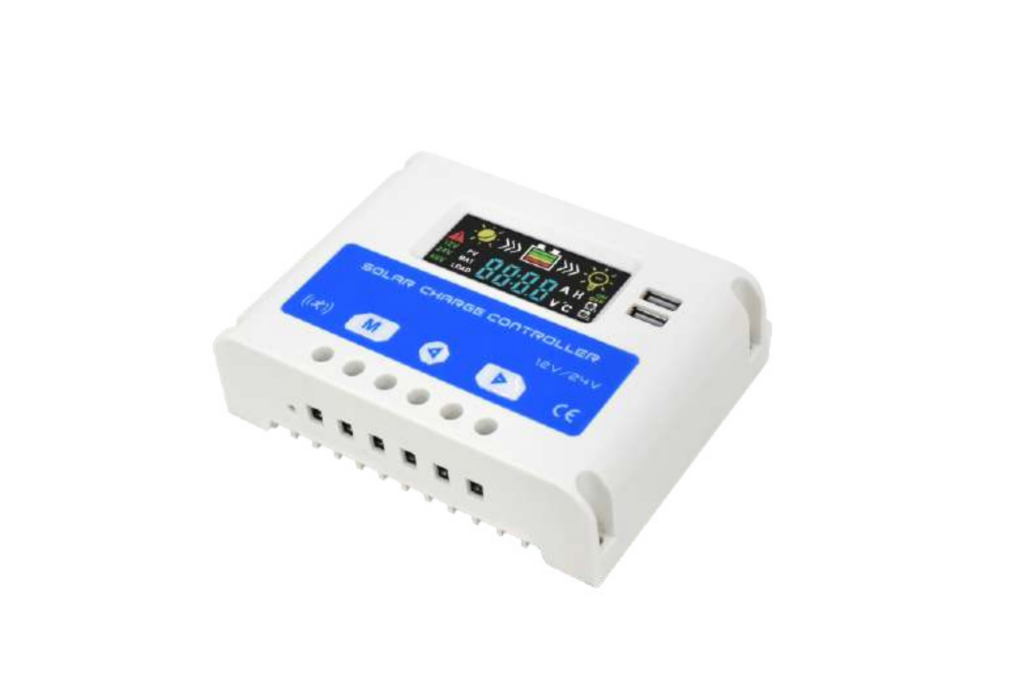

PWM Solar Controller
PWM Solar Controller
PSC Series
The PWM Solar Controller from the AN-PSC Series is designed for regulating and controlling the charging and discharging conditions of the battery in solar power systems. It ensures efficient energy conversion by managing the power output from the solar panel to the battery, and from the battery to the load. This controller is ideal for various solar applications, offering features that optimize battery life and system performance.
Features of Module
PWM Charging: Efficiently regulates power from solar panels to batteries for optimal energy conversion.
Adjustable Parameters: Allows fine-tuning of settings for specific battery types and voltage.
LCD Display: Provides real-time information on the system’s performance, including battery voltage and charging status.
Protection Features: Safeguards against overcharging, overcurrent, and overheating, ensuring safe operation.
SOC Monitoring: Displays the state of charge (SOC) of the battery for better monitoring.
Sensing Function: Includes sensing capabilities for dynamic control of charging and discharging cycles.
Class V-0 Flame Retardant Enclosure: Offers durable and safe operation in harsh environments.
Protections
Parameters
Adjustable
Battery Type
LCD display
Class V-0 Flame
Retardant Enclosure

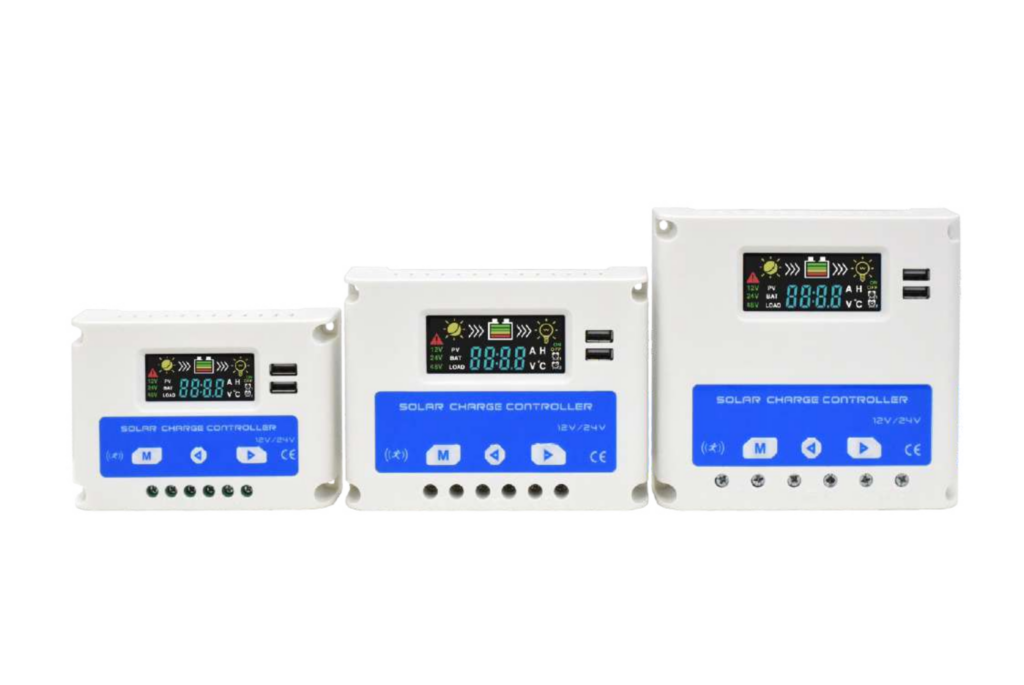

| Specification | 10A Model | 20A Model | 30A Model | 40A Model | 60A Model |
|---|---|---|---|---|---|
| DC Voltage (Auto) | 12 / 24V | 12 / 24V | 12 / 24V | 12 / 24V | 12 / 24V |
| Max Charge Current | 10A | 20A | 30A | 40A | 60A |
| PV Max Input Voltage | 50V | 50V | 50V | 50V | 50V |
| Product Size (mm) | 134 × 94 × 36 | 134 × 94 × 36 | 154 × 114 × 42 | 154 × 114 × 42 | 154 × 144 × 42 |
Why Choose This PWM Solar Controller?
The AN-PSC Series provides an intelligent, reliable solution for managing solar energy. Its advanced protection features and efficient operation ensure your solar energy system works at its best, while the adjustable settings allow for tailored control over your energy needs.
