High Voltage LFP Battery Rack (614V)
Grade A LFP(lithium iron phosphate) cells to ensure safety and performance
LFP (lithium iron phosphate) cell to ensure the highest safety
Product Details

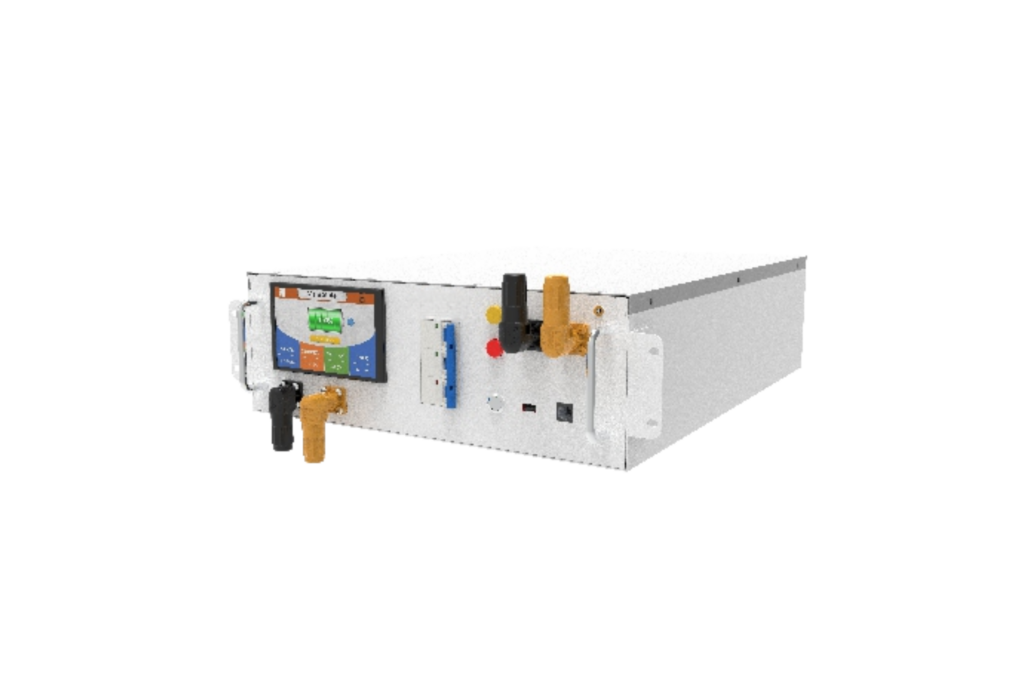

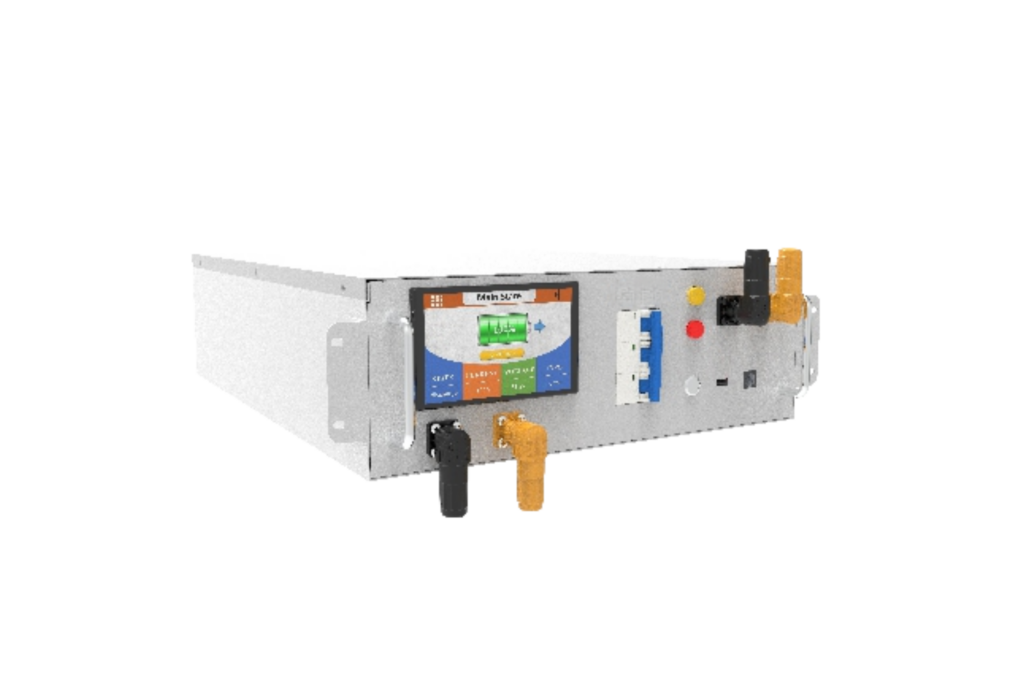

High Voltage LFP Battery Rack (614V)
This high-voltage lithium iron phosphate (LFP) battery rack is designed for large residential, commercial, and industrial energy storage applications. Built with Grade-A LFP cells, it delivers high safety, long cycle life, and stable performance for demanding power needs.
The modular rack design allows flexible capacity expansion, making it ideal for solar self-consumption, backup power, and grid-independent systems. With high round-trip efficiency and an advanced built-in BMS, it ensures reliable energy storage, precise monitoring, and long-term durability.
Engineered for efficiency, safety, and scalability, this high-voltage battery solution supports modern energy systems where consistent power, space optimization, and long service life are critical.
| Battery Chemistry | LiFePO₄ (3.2V) |
| Cell Configuration | 192S1P |
| Number of Modules | 12 PCS in Series |
| Nominal Voltage | 614.4 Vdc |
| Nominal Capacity | 100 Ah |
| Nominal Energy | 61.44 kWh |
| Operating Voltage Range | 518.4 V – 700.8 V |
| Cut-Off Voltage | 480 V |
| Recommended Charging Current | 20 A (0.2C) |
| Max. Discharging Current | 100 A |
| Efficiency (Round Trip) | ≥ 98% |
| Dimensions (L × W × H) | 442 × 580 × 155 mm |
| Weight | ≈ 46 kg |
| Mounting Options | Rack Cabinet |
| Charging Temperature | 0°C ~ 55°C |
| Discharging Temperature | -20°C ~ 55°C |
| Storage Temperature | -10°C ~ 30°C |
| Humidity | 5% – 95% Relative Humidity |
| Cycle Life (0.2C, @25°C, 80% DoD) | ≥ 6,500 Cycles |
| Design Life | 15 Years |
