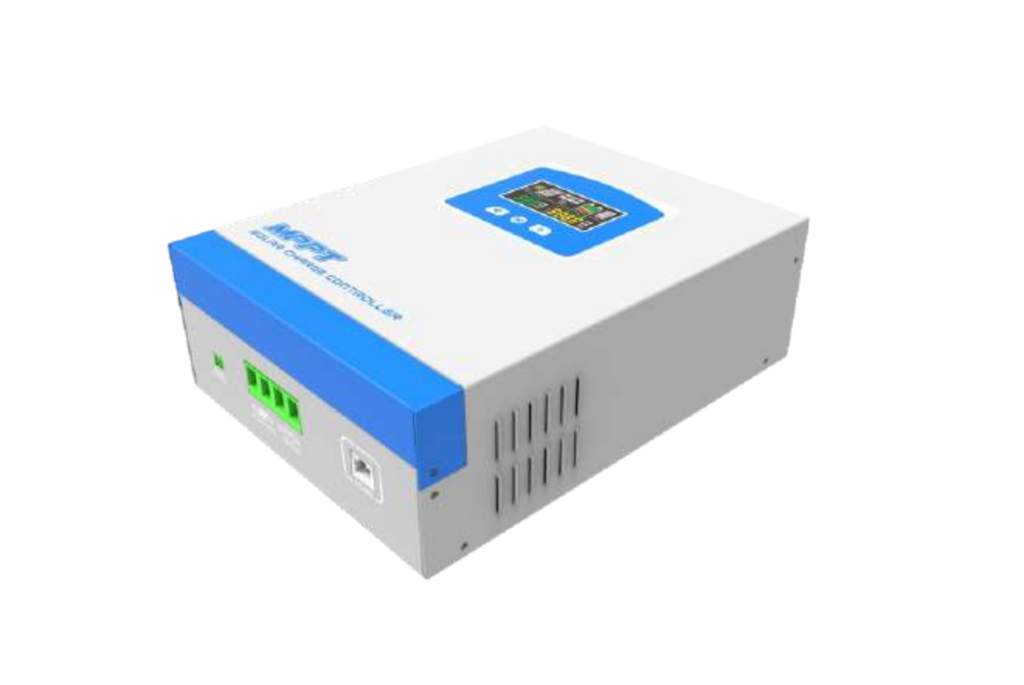

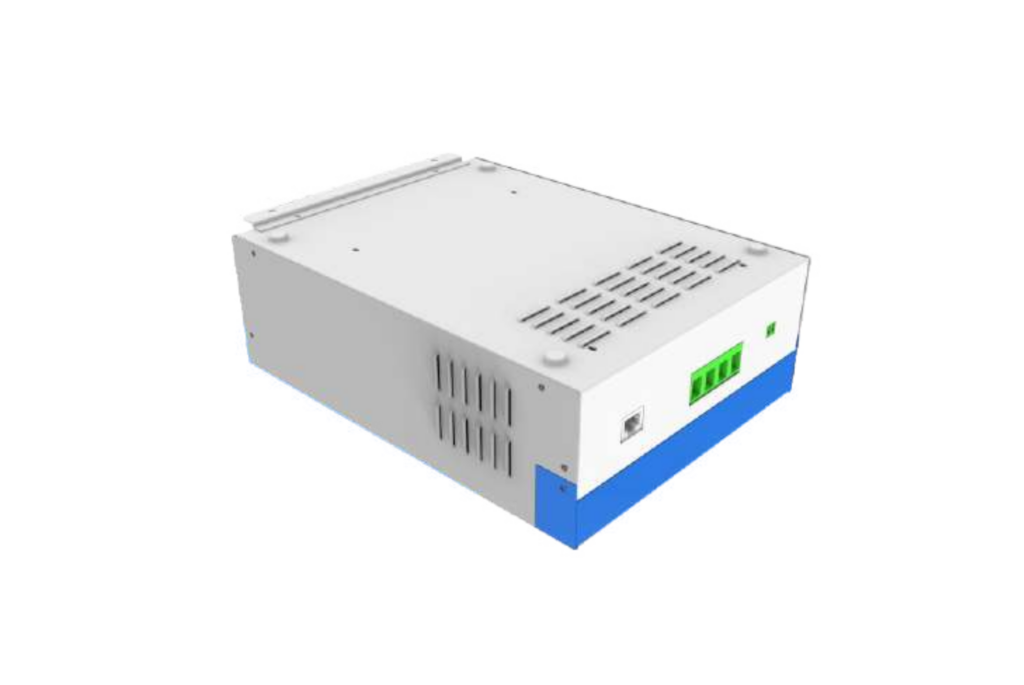

MPPT Solar Controller mSC Series
MPPT Solar Controller MSC Series

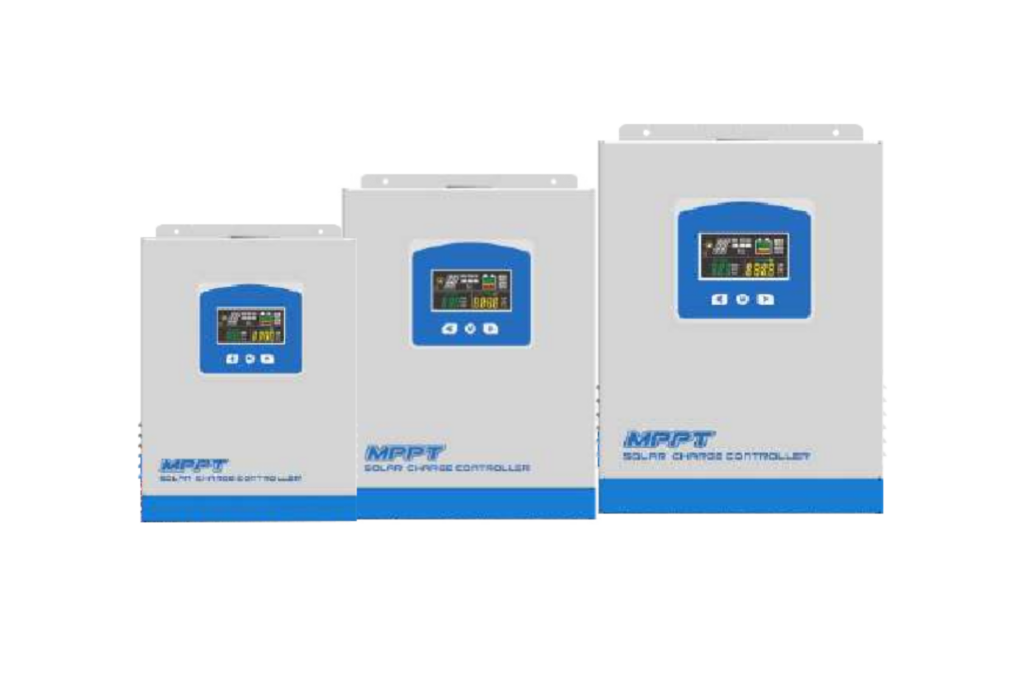

The MPPT Solar Controller is designed to maximize the energy conversion efficiency of solar power systems. With its advanced maximum power point tracking (MPPT) technology, this controller ensures optimal performance of solar panels by adjusting the voltage and current, enabling up to 30% more energy production compared to traditional PWM controllers. It is available in various models to suit different voltage and current requirements.
features of Module
Multi-level MPPT Technology: Increases solar panel output by 5%-30% compared to standard controllers.
Adjustable Parameters: Allows fine-tuning of settings for customized performance.
Battery Type Compatibility: Supports a wide range of battery types, including lithium-ion and lead-acid.
LCD Display: Easy-to-read display for real-time monitoring of system performance.
Bluetooth (Optional): Enables wireless monitoring and control of the system.
SOC Monitoring: Tracks the state of charge (SOC) to ensure efficient battery management.
Protection Features: Built-in protections for overload, short-circuit, and overtemperature.
Class V-0 Flame Retardant Enclosure: Ensures safety and durability under various environmental conditions.
Protections
Parameters
Adjustable
Battery Type
LCD display
Bluetooth (Optional)
Class V-0 Flame
Retardant Enclosure
Note: Please operate at the ambient temperature allowed by the controller. If the ambient temperature exceeds the allowable range of the controller, please derate it
| Specification | Model 1 | Model 2 | Model 3 | Model 4 |
|---|---|---|---|---|
| DC Voltage (Auto) | 12 / 24 / 48V | 12 / 24 / 48V | 24 / 48V | 96V |
| Max Charge Current | 80A | 100A | 140A | 80A |
| PV Max Input Voltage | 150V | 150V | 450V | 450V |
| Product Size (W×H×D) | 352 × 230 × 112 mm | 352 × 230 × 112 mm | 380 × 249 × 115 mm | 415 × 300 × 115 mm |
