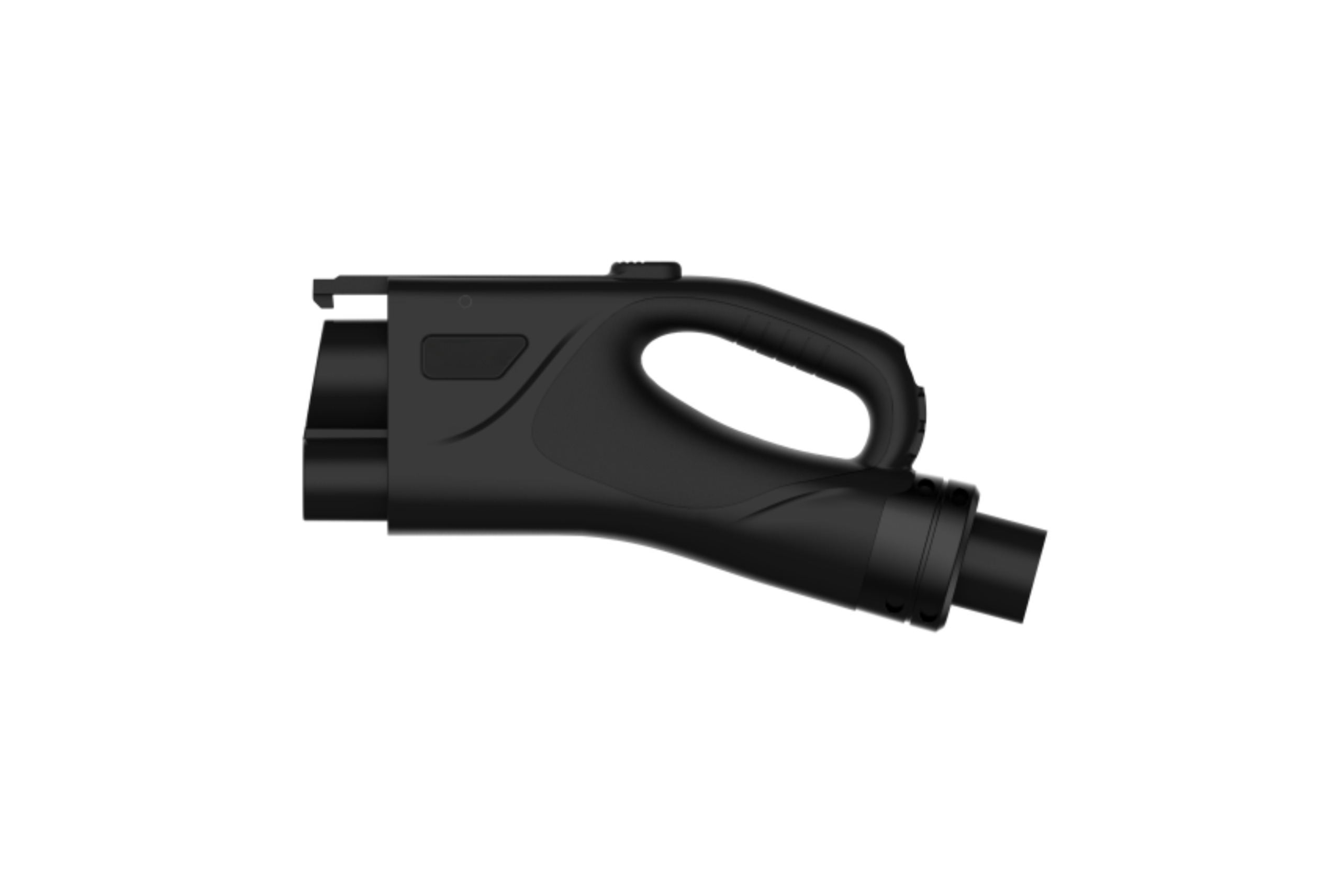

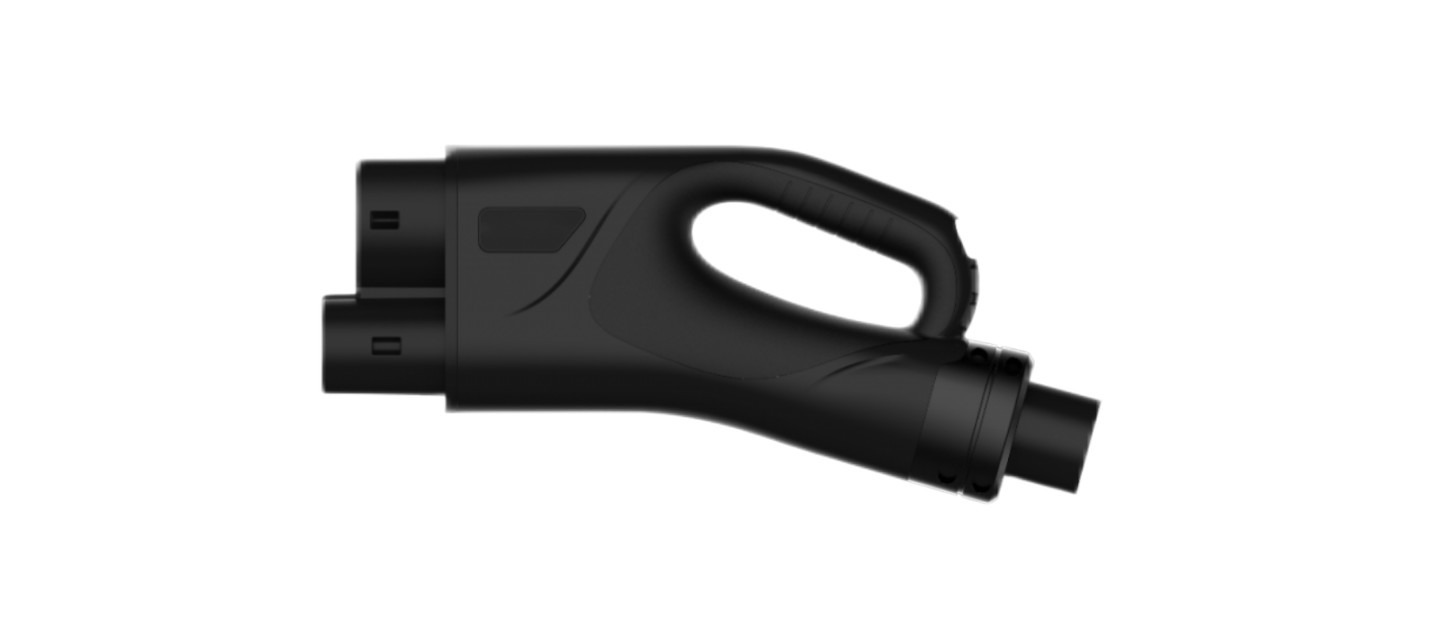

DC charging cable assembly with Vehicle connector and open cable end for charging electric vehicles with direct current by CCS Type 2 vehicle charging inlets, for installation at electric vehicle supply equipment, in accordance with IEC 61851 and IEC 62196.
Applicable Standard
IEC 61851-1:2017
IEC 62196-1:2014
IEC 62196-3:2016
1.IP67 (Protective cap) / IP67 (Plugged in).
2. Silver-plated contacts, low contact resistance.
3. Ergonomic handle.
4. TPU Cable with excellent flexibility, soft touch, weathering resistance, fatigue resistance and temperature resistance.
5.PT 1000 temperature sensors embedded.
6.Cable diameter of just 21mm for 100A; 23mm for 150A; 28 mm for 200A; 30.5 mm for 250A; 32.5mm for 300A; 35.5mm for 350A.
7.Lower resistance and a more reliable connection between DC contacts and
cable with double-sided ultrasonic welding.
| Item Name | Item No | Current | Cable Structure | Outer Diameter | Certificate |
|---|---|---|---|---|---|
| CCS Combo 1/2 Plug | HNCCS1/HNCCS2-200 | 200A | 2x(2x25)+(10+6)+6x0.75 mm² | 28.0±0.8mm | TUV CE |
| CCS Combo 1/2 Plug | HNCCS1/HNCCS2-250 | 250A | 2x(2x3AWG)+(10+16)+6x0.75 | 30.5±0.8mm | TUV CE |
| CCS Combo 1/2 Plug | HNCCS1/HNCCS2-300 | 300A | 2x(2x35)+(10+16)+6x0.75 | 32.5±0.8mm | TUV CE |
| CCS Combo 1/2 Plug | HNCCS1/HNCCS2-350 | 350A | 2x(2x50)+(16+20)+6x0.75 | 35.5±0.8mm | TUV CE |
| CCS Combo 1 Plug | HNCCS1-500 | 500A | 4x4AWG + 10AWG + 8x20AWG | 28.5±0.5mm | TUV CE |
| CCS Combo 1/2 Plug | HNCCS1/HNCCS2-600 | 600A | 2*35 + 1*25 + 8*0.5mm² | 31±0.5mm | TUV CE |
