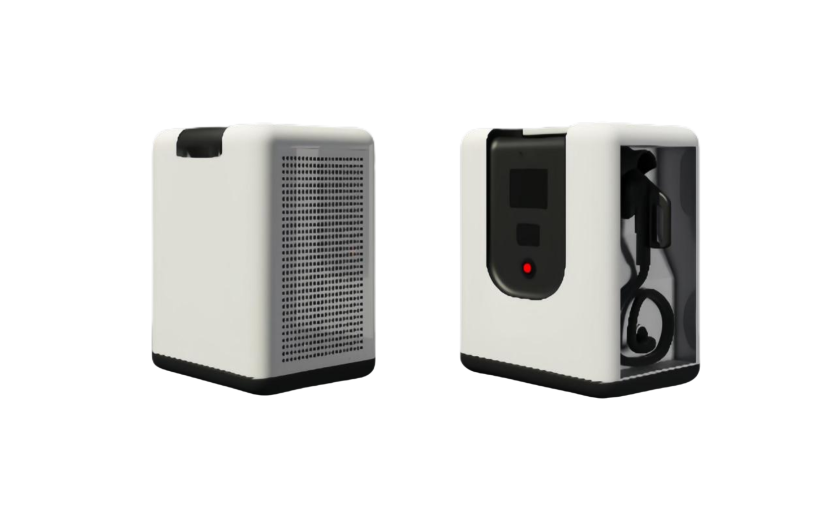

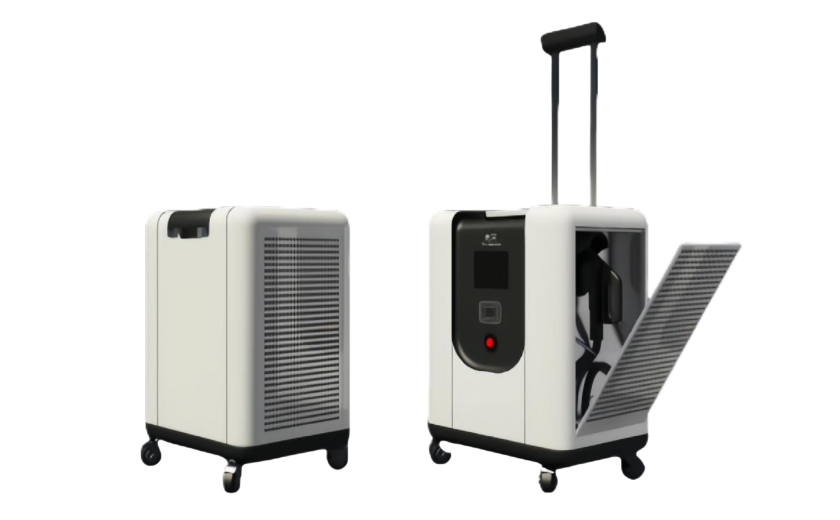

A super-fast EV charger with CCS2 charging connector. IP44 protection, sturdy and

durable for outdoor applications. It uses high frequency power module as the rectifier, specially designed for high-reliability applications. It has a Power Sharing Control function and a friendly user interface.

Vehicle Communication CCS2: IEC 61851-23 and DIN70121
Plug-out detection: IEC 61851-23 (CCS2)
Safety Compliance Europe: IEC 62196, IEC 61851-1, CE
EMC:IEC61851-21-2 Class A
Display: 7” LCD/Touch Screen
LED:RUN(G) /ALARM(R)
Power metering: 1 *DC meter
Emergency stop: E-stop to shut down both AC Input and DC output at the same time.
Wide Area Network: 4G LTE (O) wifi
Communication Protocols: OCPP 1.6
Efficiency: >94%
KAIC: 6kA
Enclosure protection: IP44
KAIC:6kA
Enclosure protection: IP44

System protection, Overcurrent protection, Short circuit protection, Input/ Output Overvoltage protection, Input Undervoltage protection, Insulation monitoring, Two DC connector output common ground protection
