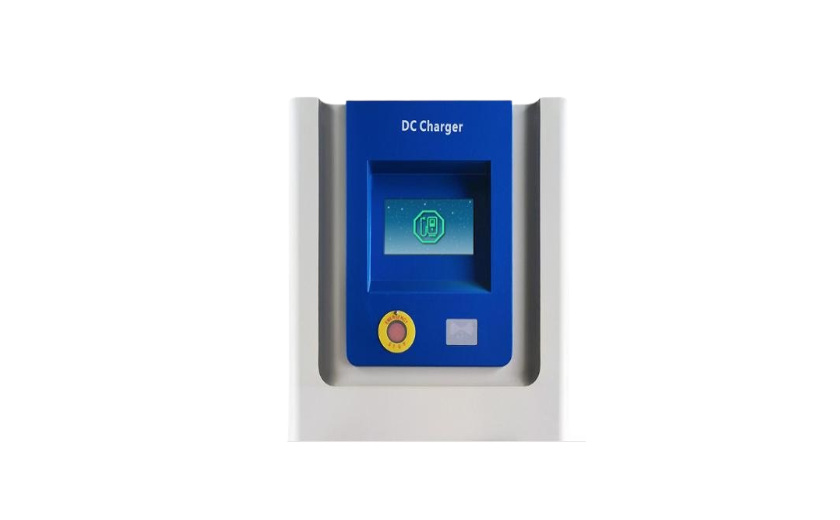

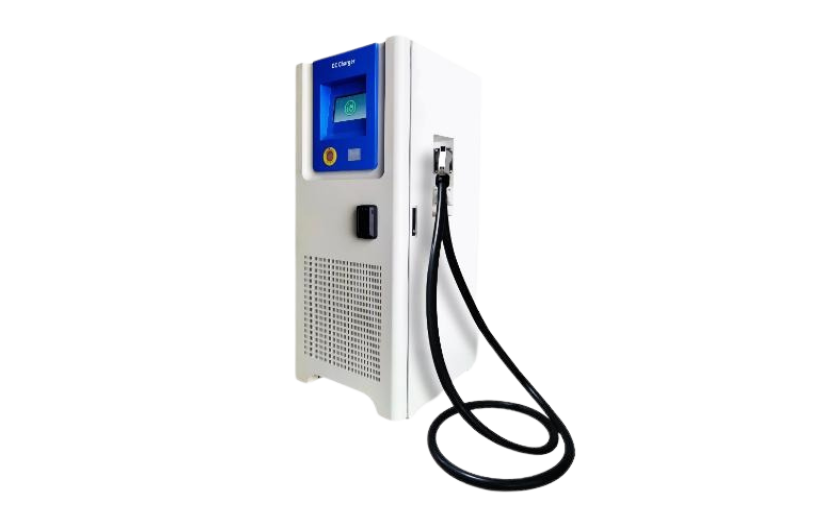

EV DC Stationary
Compliance with IEC 61851-1:2017, EN 61851-1:2010, EN61851-23:2014, EN61851-24:2014, IEC61851-21-2:2018, GB/T18487.1- 2015, and the corresponding communication standards GB/T 27930-2015, GB/T 34657.1- 2017, GB/T 34658-2017. The communication protocol with a central management system (CMS) is in compliance with OCPP 1.6 based on ARM architecture and Linux / Android platform.
Input rating: AC380V 3ph
Number of phase / wire:3ph / L1, L2, L3, N, PE
Power factor:>0.98
Current THD:<5%
Efficiency :>95%
Output voltage range: DC200V-1000V DC
Display:10” touch screen
Operating temperature: minus 20 to +55
Storage temperature:-40 to+70
Ingress protection: IP54
Enclosure Protection against: IK10 according to IEC 62262
Humidity:< 95% relative humidity, non-condensing
Certificate: CE, TUV
| Item Name | Item No | Power | Plugs | Commercial | Certificate |
|---|---|---|---|---|---|
| DC Charging station | HNDCST-60 | 60kW | CCS1/CCS2/GBT/CHAdeMo | 4G, WIFI, OCPP, TUV | CE |
| DC Charging station | HNDCST-90 | 90kW | CCS1/CCS2/GBT/CHAdeMo | 4G, WIFI, OCPP, TUV | CE |
| DC Charging station | HNDCST-120 | 120kW | CCS1/CCS2/GBT/CHAdeMo | 4G, WIFI, OCPP, TUV | CE |
| DC Charging station | HNDCST-180 | 180kW | CCS1/CCS2/GBT/CHAdeMo | 4G, WIFI, OCPP, TUV | CE |
| DC Charging station | HNDCST-240 | 240kW | CCS1/CCS2/GBT/CHAdeMo | 4G, WIFI, OCPP, TUV | CE |
| DC Charging station | HNDCST-360 | 360kW | CCS1/CCS2/GBT/CHAdeMo | 4G, WIFI, OCPP, TUV | CE |
