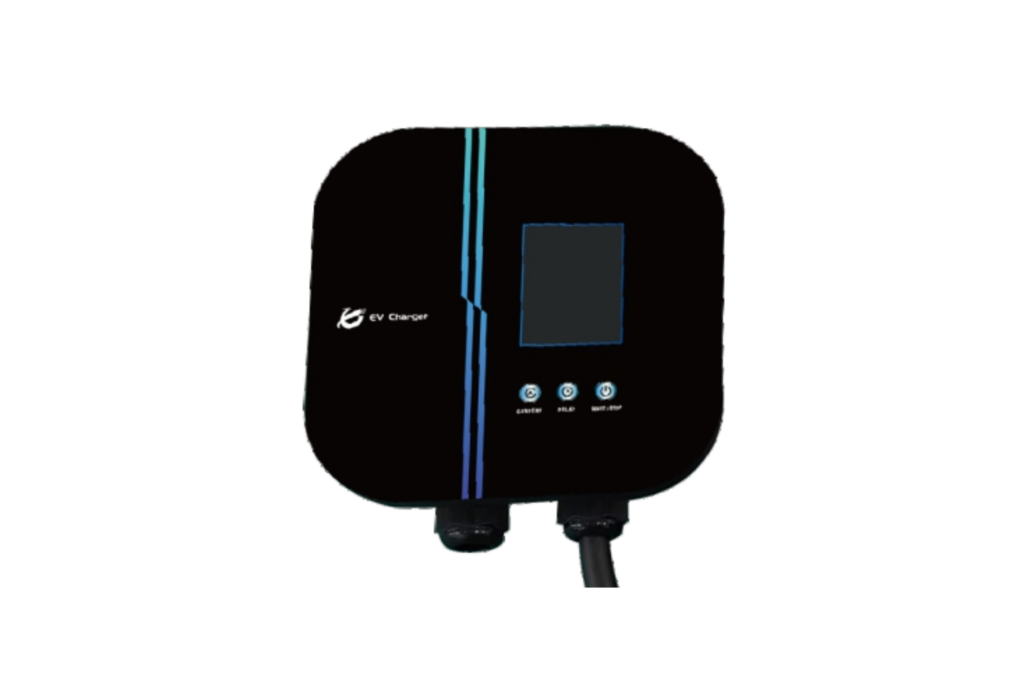

CXE-A07C/A096C
aC CHARGING STATION FOR HOME USE
Key Advantages
Compact and Fashionable Design
- The latest design can be compatible with all EVs
- Suitable for home garage, commercial parking lot, and other scenes, stylish appearance with high-tech appeal.
- Highly cost-effective & steady performance
Easy to Use
- Easy to install, optional wall-mounted or floor-standing
- Easy and flexible operation of the EV charger
Safety and Protection
- Overvoltage/overcurrent/temperature protection, etc.
- Lightning protection design: stable operation in bad weather
- IP54 protection level
Innovation
- Available to set the charging current
- Intelligent error diagnosis
- Optional 3.5-inch touchscreen model (RCD built-in)
- Optional post mounting
- Optional housing colour
- Customized LOGO
| Model | CXE-A07C | CXE-A096C |
|---|---|---|
| Electrical Specification | ||
| Power Supply | 1P+N+PE | 1P+N+PE |
| Input Voltage | 230VAC | 230VAC |
| Frequency | 50/60Hz | 50/60Hz |
| Rated Current | 32A (Max) | 40A (Max) |
| Rated Power | 7kW | 9.6kW |
| Recommend Power Supply Cable | 3*6mm copper | 3*10mm copper |
| Charging Plug | 3.5m cable | 3.5m cable |
| Functional Description | ||
| Start Mode | Plug-and-play / RFID Card | Plug-and-play / RFID Card |
| Display Screen | 3.5-inch LCD Screen (optional) | 3.5-inch LCD Screen (optional) |
| LED Indicator | LED Stripe indicates 5 status | LED Stripe indicates 5 status |
| Communication Interface | N/A | N/A |
| Communication Protocol | N/A | N/A |
| Safety Protection | Emergency button, surge protection, over/under voltage, over current, leakage protection, over temperature | |
| RCD Built-in | / | / |
| Ambient Conditions | ||
| Work Altitude | ≤2000m | ≤2000m |
| Storage Temperature | -30°C~85°C | -30°C~85°C |
| Work Temperature | -20°C~50°C | -20°C~50°C |
| Operating Humidity | 5%~95% no condensation | 5%~95% no condensation |
| Installation Location | Indoor or outdoor, good ventilation, no flammable, explosive gases | Indoor or outdoor, good ventilation, no flammable, explosive gases |
| Cooling | Natural cooling | Natural cooling |
| Mechanical Parameters | ||
| Product Dimension | 200mm*200mm*100mm (3.5-inch) | 250mm*250mm*92mm (without screen) |
| Mounting | Wall / post | Wall / post |
| IP Grade | IP54 | IP54 |
| Material | Metal plate shell with powder coating | Metal plate shell with powder coating |
